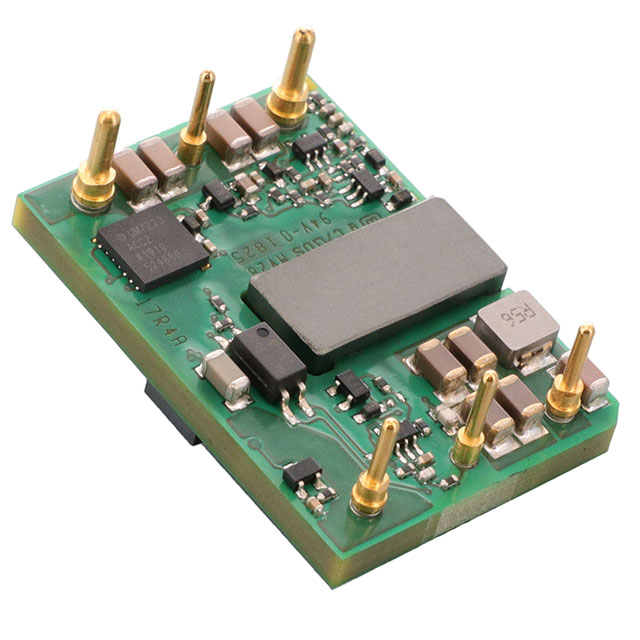

PKU4213DPI

PKU4213DPI is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Flex Power Modules. Its product description is DC DC CONVERTER 12V 180W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PKU4213DPI

• Description：DC DC CONVERTER 12V 180W
• Series：PKU4213D (204W)
• Mfr：Flex Power Modules
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：15A
• Power (Watts)：180 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off, Remote Sense
• Operating Temperature：-40°C ~ 125°C (With Derating)
• Efficiency：94.60%
• Mounting Type：Through Hole
• Package / Case：Sixteenth Brick
• Size / Dimension：1.30" L x 0.90" W x 0.44" H (33.0mm x 22.9mm x 11.3mm)
• Supplier Device Package：Sixteenth Brick
• Control Features：Enable, Active Low
• Approval Agency：CB, CSA, IEC, TUV, UL
• Standard Number：62368-1
• Grade：-
• Qualification：-
