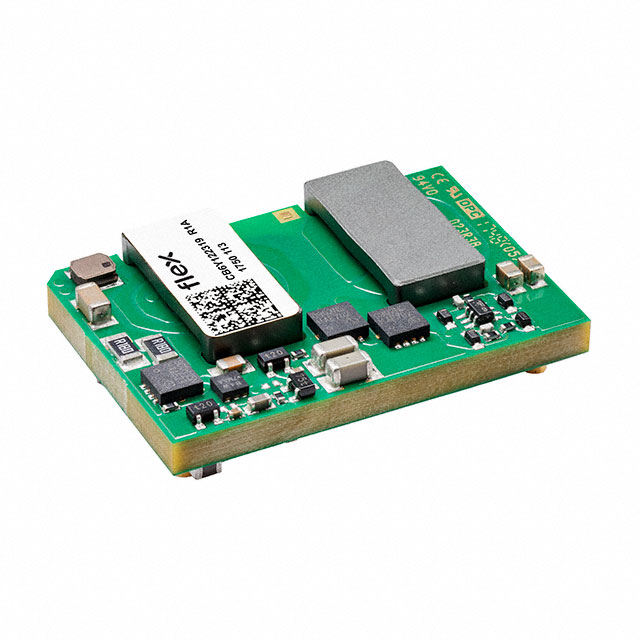

PKU4611ASI

PKU4611ASI is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Flex Power Modules. Its product description is DC DC CONVERTER 5V 60W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PKU4611ASI

• Description：DC DC CONVERTER 5V 60W
• Series：PKU 4000A (60W)
• Mfr：Flex Power Modules
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：60V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：12A
• Power (Watts)：60 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 125°C (With Derating)
• Efficiency：94%
• Mounting Type：Surface Mount
• Package / Case：Sixteenth Brick
• Size / Dimension：1.30" L x 0.90" W x 0.33" H (33.0mm x 22.9mm x 8.4mm)
• Supplier Device Package：Sixteenth Brick
• Control Features：Enable, Active Low
• Approval Agency：CB, CSA, IEC, TUV, UL
• Standard Number：62368-1
• Grade：-
• Qualification：-
