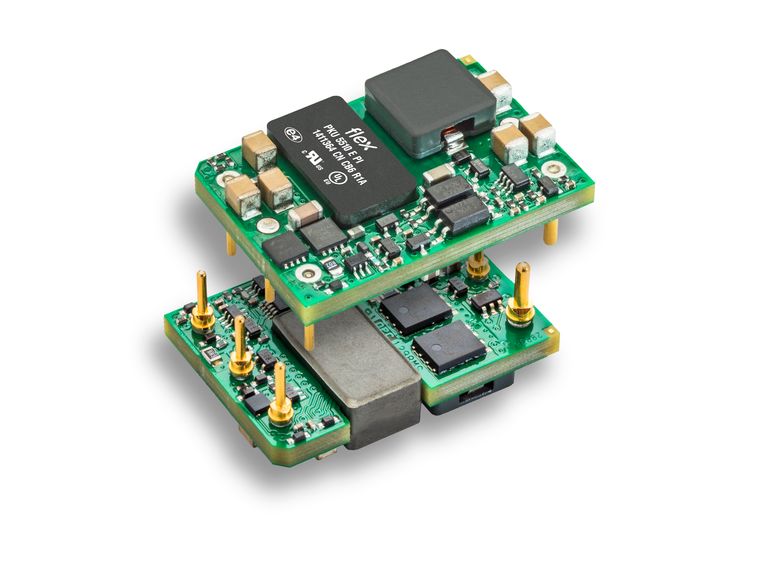

PKU5315EPI

PKU5315EPI is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Flex Power Modules. Its product description is DC DC CONVERTER 15V 30W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PKU5315EPI

• Description：DC DC CONVERTER 15V 30W
• Series：PKU 5000E (35W)
• Mfr：Flex Power Modules
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：72V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：2A
• Power (Watts)：30 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：89%
• Mounting Type：Through Hole
• Package / Case：Sixteenth Brick
• Size / Dimension：1.30" L x 0.90" W x 0.30" H (33.0mm x 22.9mm x 7.5mm)
• Supplier Device Package：Sixteenth Brick
• Control Features：Enable, Active Low
• Approval Agency：CB, CSA, IEC, TUV, UL
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for PKU5315EPI
