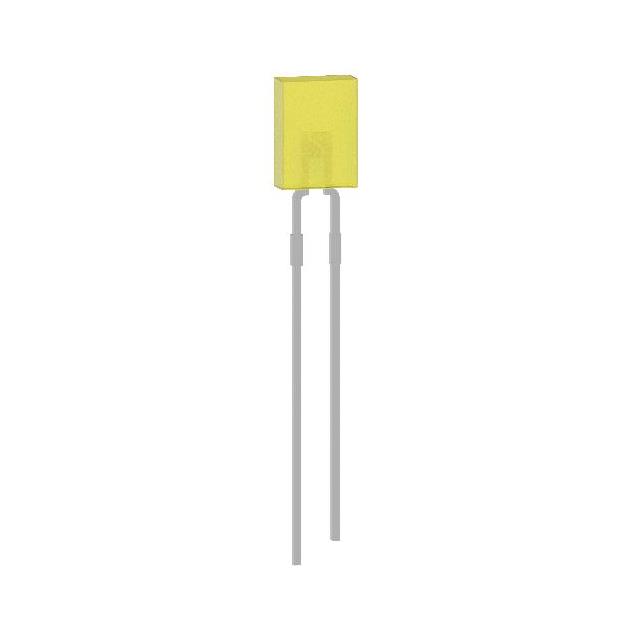

PL43-CDY01 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists P-tec. Its product description is LED YL DIFFUSED RECT 2.5X5MM T/H. Review the specifications below when checking this part for your BOM.
LED Indication - Discrete specifications for PL43-CDY01
- Description：LED YL DIFFUSED RECT 2.5X5MM T/H
- Series：PL43
- Mfr：P-tec
- Package：Bulk
- Color：Yellow
- Configuration：-
- Lens Color：Yellow
- Lens Transparency：Diffused
- Millicandela Rating：5mcd
- Lens Style：Rectangle with Flat Top
- Lens Size：5.00mm x 2.00mm
- Voltage - Forward (Vf) (Typ)：2.1V
- Current - Test：20mA
- Viewing Angle：90°
- Mounting Type：Through Hole
- Wavelength - Dominant：590nm
- Wavelength - Peak：585nm
- Features：-
- Package / Case：Radial
- Supplier Device Package：Rectangular 2mmx5mm
- Size / Dimension：-
- Height (Max)：7.00mm
LED Indication - Discrete datasheet and documents for PL43-CDY01
LED Indication - Discrete Overview
The PL43-CDY01 is a rectangular through-hole LED manufactured by P-tec. It features a yellow lens with dimensions of 5.00mm x 2.00mm and a maximum height of 7.00mm. The component operates at a forward current of 20mA with a voltage of 2.1V. The lens style is rectangular with a flat top, designed for discrete indication applications.
LED Indication - Discrete Feature Summary
- Rectangular lens design with a flat top surface
- Through-hole mounting configuration
- Yellow light emission
LED Indication - Discrete Applications
- Discrete LED indication
- Panel mounted indicators
- Automotive control panels
- Industrial control systems
LED Indication - Discrete Procurement Notes
Verify the specific datasheet version from P-tec Corporation to confirm electrical characteristics and mechanical tolerances. Ensure compatibility with existing PCB layouts regarding the 2x5mm footprint and 7.00mm height constraint. Cross-reference part numbers to avoid confusion with similar rectangular LED variants in the P-tec portfolio.
LED Indication - Discrete Selection Notes
Select this component when a low-profile rectangular indicator is required for panel mounting. The 20mA current rating suits standard logic-level driving circuits. Consider the 2.1V forward voltage drop when designing series resistor networks. Verify that the yellow wavelength meets visibility requirements for the intended environment.
LED Indication - Discrete Part Context
P-tec specializes in LED and LCD products for automotive and industrial sectors. This model belongs to their rectangular LED line, emphasizing compact form factors for space-constrained designs. The manufacturer provides engineering support for custom LED solutions, including assembly and testing services.
LED Indication - Discrete Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult P-tec directly for equivalent recommendations or cross-reference compatible rectangular LEDs with matching 2x5mm dimensions and 20mA ratings.
