PL44-CDR12

LED Indication - Discrete Overview

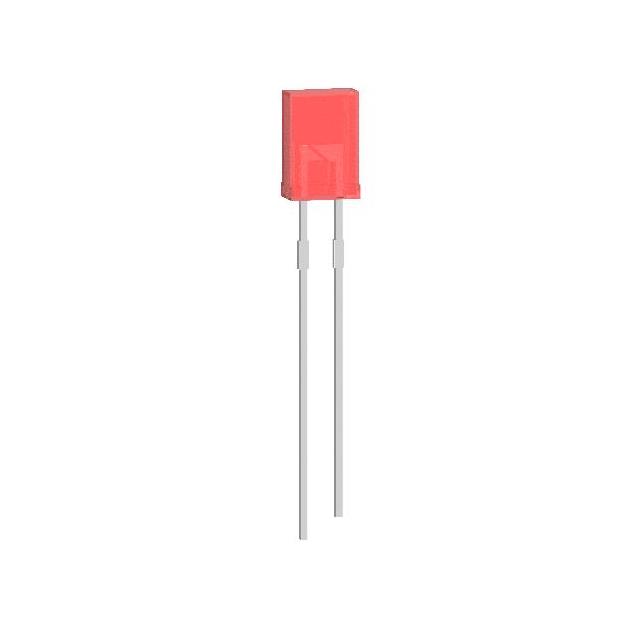

The PL44-CDR12 is a discrete red LED indicator manufactured by P-tec. It features a rectangular lens measuring 5.00mm x 2.00mm with a flat top and diffused optics. The component operates at a forward voltage of 2.1V and emits light at a wavelength of 590nm. It provides an approximate luminous intensity of 8mcd. The device utilizes a radial lead configuration suitable for through-hole mounting applications.

LED Indication - Discrete Feature Summary

• Rectangular lens geometry with a flat top surface design
• Diffused optical lens for uniform light distribution
• Radial lead package configuration for standard mounting

LED Indication - Discrete Applications

• Panel status indication
• Equipment power signaling
• Control board visual feedback

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version from P-tec Corporation to confirm electrical tolerances and thermal characteristics. Ensure the radial lead spacing matches the target PCB footprint. Cross-reference the 590nm wavelength requirement against system visibility standards before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a low-profile rectangular form factor is required for panel mounting. The diffused lens option is appropriate where glare reduction is necessary. Confirm that the 2.1V forward voltage aligns with the available drive circuitry capabilities within the target electronic assembly design.

LED Indication - Discrete Part Context

This part belongs to the P-tec discrete LED series, which includes various rectangular and radial configurations. Similar models such as PL43-CDR12 share the rectangular lens style but may differ in wavelength or intensity specifications. The CDR12 suffix typically denotes the radial lead format and specific lens treatment used in this product line.

LED Indication - Discrete Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing footprints if considering alternative manufacturers. Consult official P-tec catalogs for direct equivalents with matching mechanical dimensions.
