PL70-CDR12

LED Indication - Discrete Overview

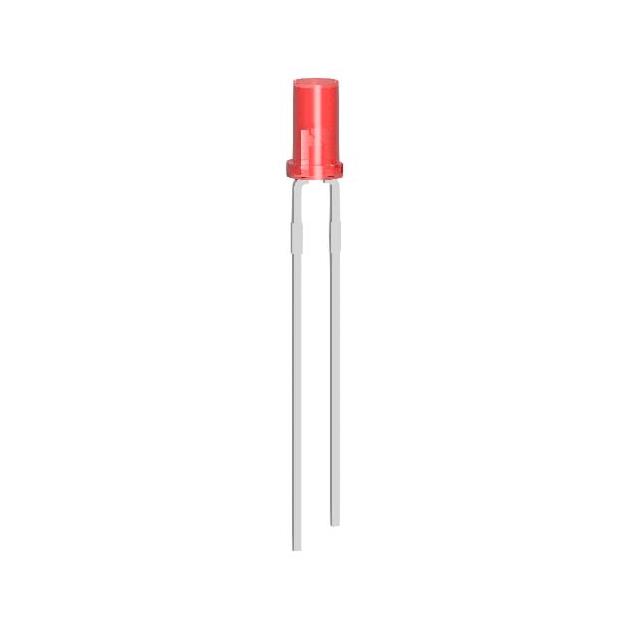

The PL70-CDR12 is a red cylindrical LED component manufactured by P-tec Corporation. It features a 3mm (T1) radial leaded package design with a 2.95mm diameter. The device emits light at a wavelength of 626nm and operates with a forward voltage of 2.1V. This discrete indicator is designed for through-hole mounting applications requiring standard visual signaling.

LED Indication - Discrete Feature Summary

• Red color emission at 626nm wavelength
• Cylindrical T1 form factor with radial leads
• Low forward voltage operation at 2.1V

LED Indication - Discrete Applications

• Visual status indication in electronic devices
• Panel mount indicator lights
• Discrete signal components in control panels

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version from P-tec Corporation to confirm electrical ratings and mechanical dimensions. Ensure compatibility with existing PCB layouts regarding the 3mm T1 radial footprint. Check RoHS compliance status if required for your manufacturing process. Confirm availability through authorized distributors as stock levels fluctuate.

LED Indication - Discrete Selection Notes

Select this component when a red, low-voltage indicator is needed for through-hole assembly. The 2.1V forward voltage suits circuits operating within standard logic levels. The 626nm wavelength provides distinct red visibility. Consider the 3mm size constraint for panel cutouts or enclosure designs requiring compact indicators.

LED Indication - Discrete Part Context

This part belongs to the P-tec Cylindrical LED series, specifically the PL70 variant line. It shares the T1 radial package style with other models like PL07-CDR12 but differs in specific optical characteristics. The product line focuses on discrete LED indicators for general-purpose electronic applications.

LED Indication - Discrete Replacement Considerations

Cross-reference with PL07-CDR12 for similar T1 radial packages. Verify that substitute parts match the 2.1V forward voltage and 626nm peak wavelength requirements. Ensure mechanical dimensions align with existing board space constraints.
