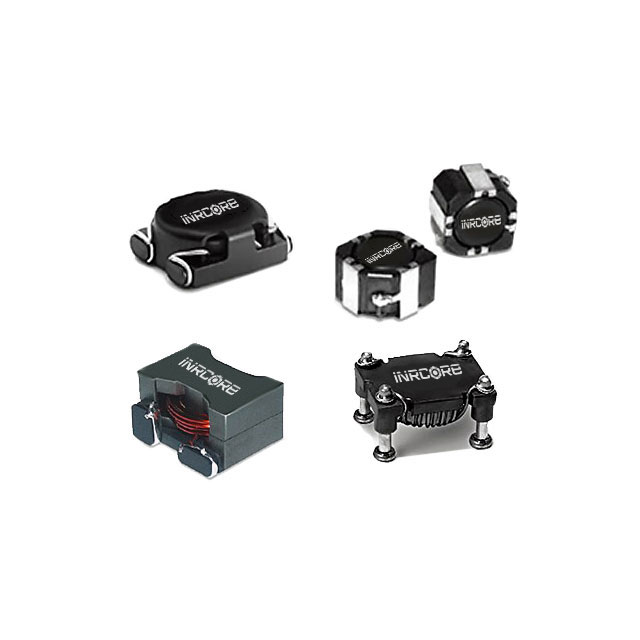

PL8151

$9.48

Description：FIXED IND 2.1UH 11.5A 4 MOHM SMD
Series：SLED
Mfr：iNRCORE, LLC
Package：Tube

SKU:9adac91a4a1a Category: Fixed Inductors Brand: iNRCORE, LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PL8151 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists iNRCORE, LLC. Its product description is FIXED IND 2.1UH 11.5A 4 MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for PL8151

Description：FIXED IND 2.1UH 11.5A 4 MOHM SMD
Series：SLED
Mfr：iNRCORE, LLC
Package：Tube
Type：Toroidal
Material - Core：-
Inductance：2.1 µH
Tolerance：-
Current Rating (Amps)：11.5 A
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：4mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-55°C ~ 130°C
Inductance Frequency - Test：-
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.725" L x 0.575" W (18.42mm x 14.61mm)
Height - Seated (Max)：0.410" (10.41mm)
Features：-

Fixed Inductors datasheet and documents for PL8151

PL8151

Fixed Inductors Overview

The PL8151 is a fixed surface-mount power inductor manufactured by iNRCORE, LLC. It features a toroidal core design with an inductance of 2.1 µH and a high saturation current rating of 11.5 A. The component exhibits a maximum DC resistance of 4 mΩ, ensuring efficient power transmission with minimal loss. It is designed for robust performance across a wide operating temperature range from -55°C to +130°C. The physical package dimensions are approximately 18.4 mm by 14.6 mm, suitable for PCB mounting in space-constrained applications requiring high current handling capabilities.

Fixed Inductors Feature Summary

High current handling capability with 11.5 A rating
Low DC resistance for efficient power delivery
Wide operating temperature range for harsh environments
Ruggedized toroidal construction

Fixed Inductors Applications

Power supply modules
Telecommunications equipment
Industrial control systems

Fixed Inductors Procurement Notes

Verify the specific manufacturer part number PL8151 against official iNRCORE documentation to confirm technical specifications. Ensure compatibility with required current ratings and thermal management strategies. Check for any specific ordering suffixes that may indicate packaging variations or tolerance levels. Confirm lead times and availability through authorized distributors.

Fixed Inductors Selection Notes

Select this component when high saturation current and low impedance are critical for power integrity. Consider the physical footprint constraints due to its SMD package size. Evaluate thermal dissipation requirements given the high current rating. Ensure the application environment falls within the specified -55°C to +130°C operating range for reliable performance.

Fixed Inductors Part Context

iNRCORE, LLC specializes in ruggedized magnetic components for mission-critical applications. The PL8151 belongs to their catalog of fixed power inductors designed for durability in harsh conditions. This product line supports industries such as military aerospace, communications, and industrial automation where reliability is paramount.
