PL82-WDRG1213

LED Indication - Discrete Overview

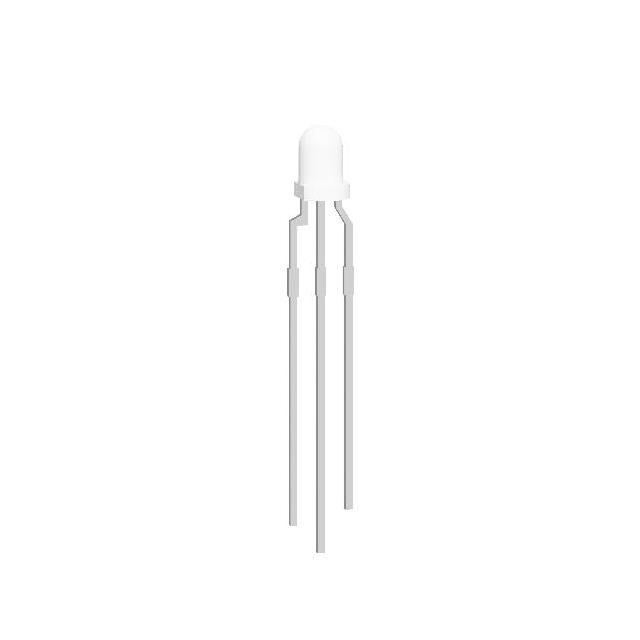

The PL82-WDRG1213 is a 3mm bi-color LED component manufactured by P-tec Corporation. It features a round lens with a domed top and utilizes three leads for electrical connection. The device emits red and green light, housed within a white lens casing. This indicator is designed for circuit board applications, providing visual status signals through dual-color output capabilities in a compact form factor suitable for panel mounting.

LED Indication - Discrete Feature Summary

• Bi-color functionality enabling distinct red and green illumination states
• Three-lead configuration for independent color control
• Round lens design with a domed top surface
• White lens housing to enhance light diffusion

LED Indication - Discrete Applications

• Circuit board status indicators
• Panel mount visual signaling
• Electronic equipment power or mode indication

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version from P-tec Corporation to confirm forward voltage and current ratings. Ensure the three-lead pinout matches the target PCB footprint. Confirm that the 3mm diameter and lead spacing align with mechanical constraints. Cross-reference the lens style and color specifications against system requirements before finalizing procurement.

LED Indication - Discrete Selection Notes

Select this component when a compact 3mm bi-color indicator is required for visual feedback. The three-lead design allows for separate control of red and green elements. Consider the white lens for optimal light distribution. Verify compatibility with available drive circuits for the specified current requirements. Ensure the physical dimensions fit the designated enclosure space.

LED Indication - Discrete Part Context

This part belongs to P-tec's line of optoelectronic components, specifically focusing on LED indicators. The manufacturer specializes in light-emitting diodes and liquid crystal displays for various industrial and consumer electronics applications. The PL82 series represents their standard range of through-hole LED solutions.

LED Indication - Discrete Replacement Considerations

Check for direct substitutes such as the PL85-WDRG1213, which shares similar bi-color characteristics but differs in physical dimensions (5mm vs 3mm). Verify lead count and lens style compatibility when considering alternative models from the same manufacturer or other suppliers.
