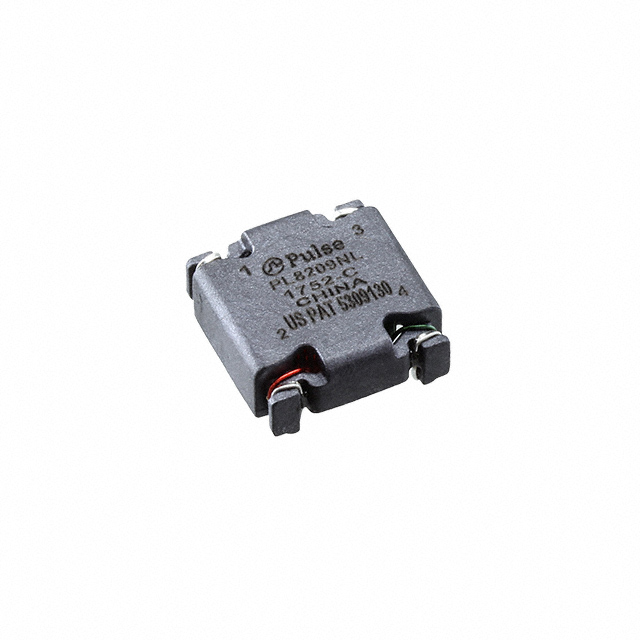

PL8209NLT is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists iNRCORE, LLC. Its product description is CMC 1.63A 2LN SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PL8209NLT
- Description：CMC 1.63A 2LN SMD
- Series：SLIC
- Mfr：iNRCORE, LLC
- Package：Tape & Reel (TR)
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：1.63A
- DC Resistance (DCR) (Max)：110mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-55°C ~ 130°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
- Height (Max)：0.215" (5.46mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for PL8209NLT
Common Mode Chokes Overview
The PL8209NLT is a ruggedized common mode choke manufactured by iNRCORE, LLC. It features an inductance of unspecified value with a rated current of 1.63 A and two lines (2LN). The component utilizes surface mount technology (SMD/SMT) for PCB mounting. Physical dimensions are 12.70 mm in length and 12.70 mm in width. It operates within a temperature range of -55°C to +130°C. The device is RoHS compliant and lead-free.
Common Mode Chokes Feature Summary
- Ruggedized construction designed for reliable performance in demanding environments
- Surface mount configuration suitable for automated assembly processes
- Dual-line capability for effective common mode noise suppression
Common Mode Chokes Applications
- Embedded systems requiring noise filtering
- Industrial automation equipment
- General electronics applications
Common Mode Chokes Procurement Notes
Verify the specific datasheet for the PL8209NLT to confirm exact inductance values and DC resistance parameters not fully detailed in general listings. Confirm package orientation and pad layout against your PCB footprint requirements. Ensure the supplier provides genuine iNRCORE components with valid date codes. Check for any specific handling instructions related to the SMD package type during procurement.
Common Mode Chokes Selection Notes
Select this component when dual-line common mode filtering is required for embedded or industrial applications. The ruggedized design supports operation across a wide temperature range from -55°C to +130°C. The 1.63 A rating determines its suitability for specific current loads. Verify that the 12.70 mm x 12.70 mm footprint fits the available board space. Consider the surface mount style for manufacturing compatibility.
Common Mode Chokes Part Context
This part belongs to the iNRCORE common mode choke family, categorized under inductors, chokes, and coils. It is specifically identified as a ruggedized type, distinguishing it from standard commercial grade components. The manufacturer specializes in power management and signal integrity solutions. This model represents a surface mount variant designed for integration into compact electronic assemblies.
Common Mode Chokes Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source data. Consult the official iNRCORE documentation or authorized distributors for verified alternates. Do not assume cross-compatibility with other manufacturers' common mode chokes without verifying electrical and physical specifications.
