PL8210NL

Common Mode Chokes Overview

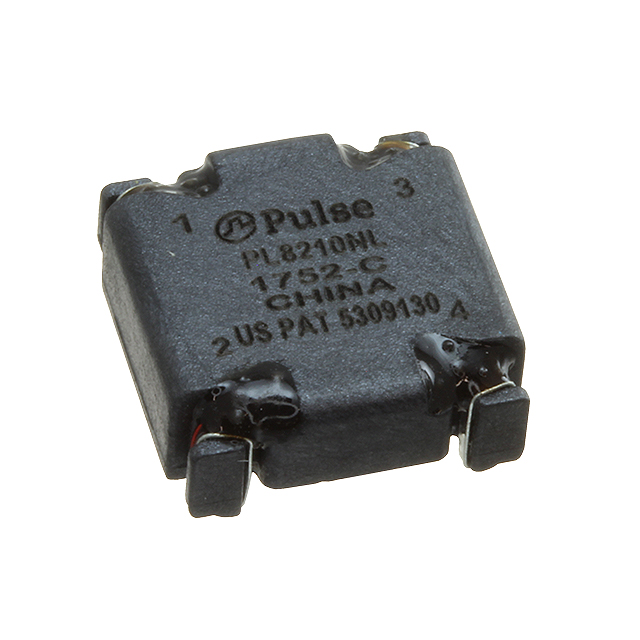

The PL8210NL is a ruggedized, unshielded common mode choke manufactured by iNRCORE, LLC. It features a single-channel surface mount design with an inductance of 1.17 mH and a tolerance of 35%. The component supports a maximum DC current of 1.22 A and has a maximum DC resistance of 200 mOhms. It operates within a temperature range of -55 C to +130 C. The physical package dimensions are 12.7 mm x 12.7 mm x 5.46 mm.

Common Mode Chokes Feature Summary

• Designed for military and aerospace applications requiring ruggedized performance
• Provides effective noise filtering and common mode rejection for dual-line circuits
• Surface mount construction facilitates automated PCB assembly processes

Common Mode Chokes Applications

• Military electronic systems
• Aerospace communication equipment
• Dual-line signal protection circuits

Common Mode Chokes Procurement Notes

Verify the specific RoHS compliance status through official manufacturer documentation before integration. Confirm that the SMD/SMT termination type matches your PCB footprint requirements. Ensure the operating temperature range meets your environmental specifications. Check for any factory special order constraints or minimum ordering requirements directly with iNRCORE, LLC prior to finalizing procurement plans.

Common Mode Chokes Selection Notes

Select this component when high reliability in harsh environments is required. The unshielded design may influence placement relative to sensitive components. Verify that the 1.22 A saturation current aligns with your circuit's peak load conditions. Consider the physical size constraints of the 12.7 mm square package during layout planning.

Common Mode Chokes Part Context

This part belongs to the SLIC series from iNRCORE, LLC, specifically engineered for robust industrial and defense use cases. It falls under the category of inductors, chokes, and coils. The device serves as a critical passive element for electromagnetic interference suppression in dual-conductor transmission lines.

Common Mode Chokes Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult iNRCORE technical support for qualified alternatives if supply chain constraints arise.
