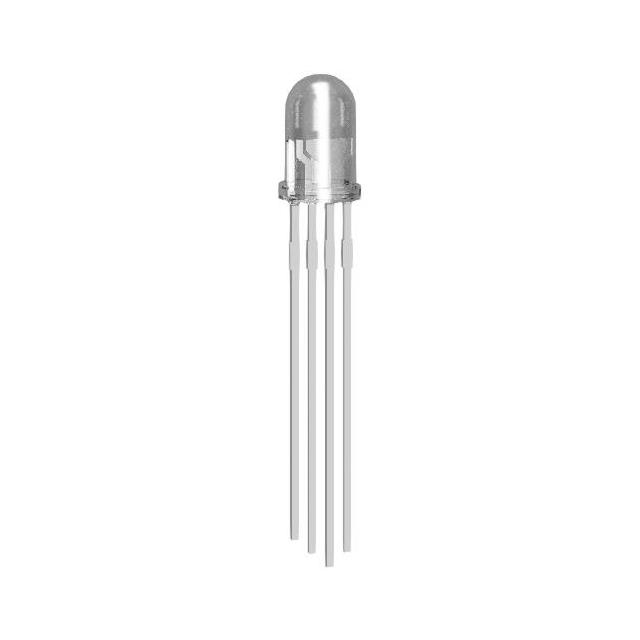

PL84-WCRGB1 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists P-tec. Its product description is LED RGB CLEAR T-1 3/4 T/H. Review the specifications below when checking this part for your BOM.
LED Indication - Discrete specifications for PL84-WCRGB1
- Description：LED RGB CLEAR T-1 3/4 T/H
- Series：PL84
- Mfr：P-tec
- Package：Bulk
- Color：Red, Green, Blue (RGB)
- Configuration：Common Anode
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：4000mcd Red, 2500mcd Green, 1000mcd Blue
- Lens Style：Round with Domed Top
- Lens Size：5mm, T-1 3/4
- Voltage - Forward (Vf) (Typ)：2.1V Red, 3.2V Green, 3.2V Blue
- Current - Test：20mA Red, 20mA Green, 20mA Blue
- Viewing Angle：40°
- Mounting Type：Through Hole
- Wavelength - Dominant：625nm Red, 520nm Green, 465nm Blue
- Wavelength - Peak：-
- Features：-
- Package / Case：Radial - 4 Leads
- Supplier Device Package：T-1 3/4
- Size / Dimension：-
- Height (Max)：8.70mm
LED Indication - Discrete datasheet and documents for PL84-WCRGB1
LED Indication - Discrete Overview
The PL84-WCRGB1 is a surface-mount RGB LED component manufactured by P-tec. It integrates Red, Green, and Blue chips within a single package to produce full-color output. The device features a colorless lens and operates with a forward current of 20mA for each primary color channel. The maximum height of the component is 8.70mm, and it utilizes a 5mm T-1 3/4 lens size configuration.
LED Indication - Discrete Feature Summary
- Integrates Red, Green, and Blue light-emitting diodes in a single unit
- Features a colorless lens for clear optical transmission
- Supports standard 20mA operating current per color channel
LED Indication - Discrete Applications
- Indicating devices requiring multi-color status display
- Electronic equipment front panels
- Consumer appliance control interfaces
LED Indication - Discrete Procurement Notes
Verify the specific pinout configuration and thermal requirements against the official datasheet before integration. Confirm that the mounting footprint matches the design specifications. Ensure compatibility with the intended driving circuitry for the 20mA per channel operation. Check for any specific handling instructions regarding the surface-mount package.
LED Indication - Discrete Selection Notes
Select this component when a compact solution for red, green, and blue indication is required in a single package. Consider the 8.70mm height constraint for enclosure design. Evaluate the 5mm lens size for visibility requirements. Ensure the application environment supports the standard operating conditions for SMD LEDs.
LED Indication - Discrete Part Context
This part belongs to the P-tec portfolio of surface-mount LEDs. P-tec specializes in LED and LCD technology solutions for automotive and industrial sectors. The company provides various LED types including panel mount and through-hole options alongside surface-mount variants.
LED Indication - Discrete Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing designs if sourcing alternatives.
