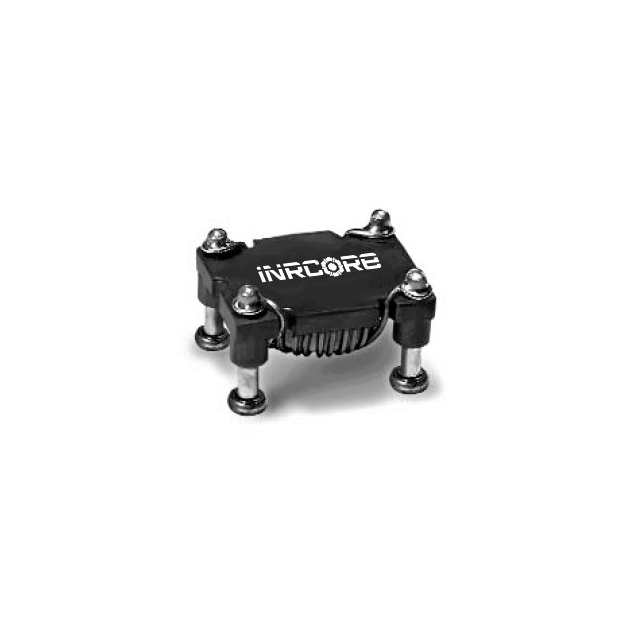

PL8401T is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists iNRCORE, LLC. Its product description is FIXED IND 39.5UH 2.7A 90.5 MOHM. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for PL8401T
- Description：FIXED IND 39.5UH 2.7A 90.5 MOHM
- Series：-
- Mfr：iNRCORE, LLC
- Package：Tape & Reel (TR)
- Type：Toroidal
- Material - Core：-
- Inductance：39.5 µH
- Tolerance：-
- Current Rating (Amps)：2.7 A
- Current - Saturation (Isat)：-
- Shielding：Unshielded
- DC Resistance (DCR)：90.5mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-55°C ~ 130°C
- Inductance Frequency - Test：-
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.910" L x 0.700" W (23.11mm x 17.78mm)
- Height - Seated (Max)：0.510" (12.95mm)
- Features：-
Fixed Inductors datasheet and documents for PL8401T
Fixed Inductors Overview
The iNRCORE PL8401T is a fixed power inductor belonging to the PL84xx series, designed for high-reliability applications. It features a shielded drum core construction with four robust PCB mounting clips to withstand shock and vibration. The component provides an inductance of 39.5 µH with a maximum DC current rating of 2.7 A and a DC resistance of 90.5 mΩ. It operates within a temperature range of -55°C to +125°C and utilizes surface-mount technology.
Fixed Inductors Feature Summary
- Shielded drum core design for superior performance under shock and vibration
- Four robust PCB mounting clips for secure mechanical attachment
- High-temperature operation capability up to +125°C
Fixed Inductors Applications
- AC-DC converters
- DC-DC converters
- Aerospace electronic systems
- Industrial control systems
Fixed Inductors Procurement Notes
Verify the specific part number PL8401T against official iNRCORE documentation to confirm the 39.5 µH inductance and 2.7 A current rating. Ensure the procurement channel sources genuine components from authorized distributors or direct manufacturer channels to guarantee authenticity and compliance with aerospace-grade quality standards.
Fixed Inductors Selection Notes
Select this component when mechanical stability is critical due to its reinforced PCB mounting clips. It is suitable for environments requiring operation up to +125°C. Compare the 39.5 µH value and 2.7 A limit against circuit requirements to ensure adequate headroom for ripple current and thermal management in power conversion stages.
Fixed Inductors Part Context
iNRCORE manufactures magnetic components for defense, space, and industrial sectors. The PL84xx series represents ruggedized power inductors engineered for mission-critical systems. This brand emphasizes reliability in harsh conditions, offering both catalog and custom solutions for high-performance power electronics.
Fixed Inductors Replacement Considerations
Consult official iNRCORE cross-reference data for verified substitutes. Generic equivalents may lack the required mechanical mounting strength or high-temperature tolerance specified for this series.
