PL85-WDRG1213

LED Indication - Discrete Overview

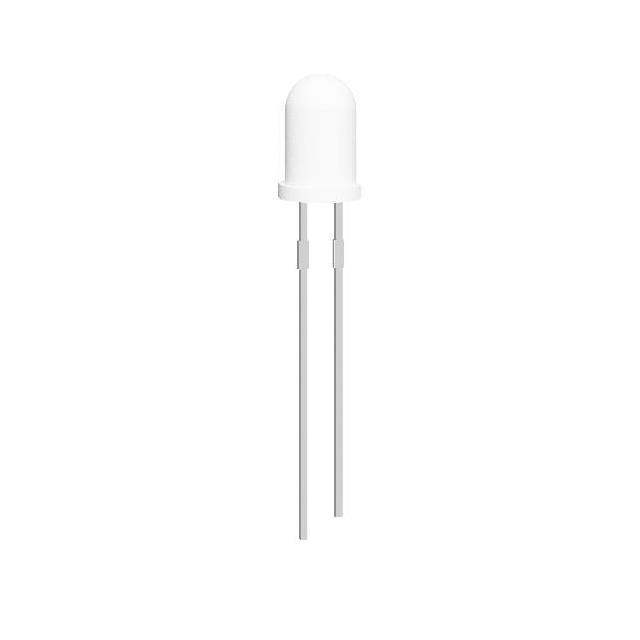

The PL85-WDRG1213 is a T-1 3/4 (5mm) through-hole bi-color LED manufactured by P-tec. It features a white diffused lens with a round domed style. The component emits green light at 572nm and red light at 626nm. Electrical specifications include a forward voltage of 2.1V for both the green and red segments, with a rated current of 20mA for each color. The maximum height of the device is 8.70mm.

LED Indication - Discrete Feature Summary

• Bi-color configuration combining green and red emission in a single radial package
• White diffused lens design providing uniform light distribution
• Standard T-1 3/4 form factor suitable for through-hole mounting

LED Indication - Discrete Applications

• Discrete status indication on electronic circuit boards
• Visual signaling in industrial control panels
• Power state display in consumer electronics devices

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to confirm the common cathode configuration and lens transparency type. Ensure the supplier provides the official P-tec datasheet to validate the 2.1V forward voltage and 20mA current ratings. Confirm that the component matches the T-1 3/4 lead spacing requirements for your PCB layout before finalizing the purchase order.

LED Indication - Discrete Selection Notes

Select this component when a dual-color visual indicator is required within a standard 5mm through-hole footprint. The white diffused lens is appropriate for applications requiring soft, non-glaring visibility. Consider the 2.1V forward voltage drop when designing the current-limiting resistor network for both the red and green channels independently.

LED Indication - Discrete Part Context

This part belongs to the P-tec PL85 series of discrete LED indicators. The series utilizes the T-1 3/4 package size, which is a common standard for panel mount and board-level status lights. The model number indicates the specific color combination and lens characteristics defined by the manufacturer's internal coding system.

LED Indication - Discrete Replacement Considerations

The PL82-WDRG1213 is a documented alternative from the same manufacturer offering similar bi-color functionality. Verify mechanical dimensions and electrical parameters against the target application requirements before substituting.
