PL9307T

$5.26

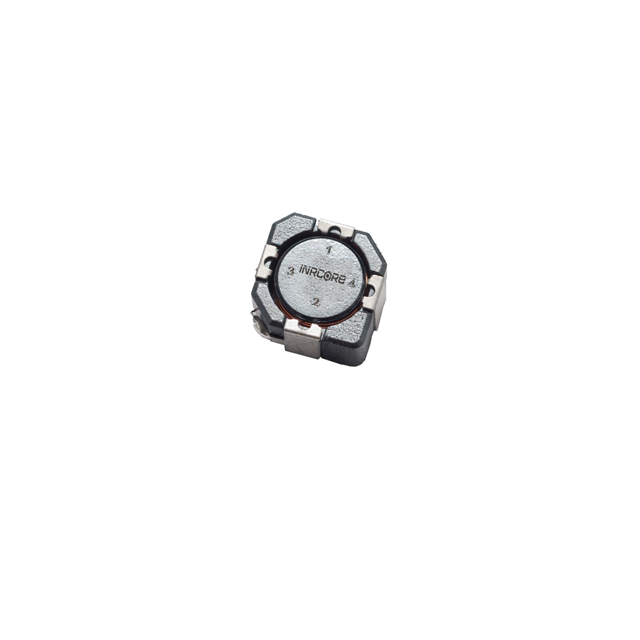

Description：FIXED IND 7.6UH 3.5A 30.8MOHM SM
Series：PL93XX
Mfr：iNRCORE, LLC
Package：Tape & Reel (TR)

SKU:cc523a0f491f Category: Fixed Inductors Brand: iNRCORE, LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PL9307T is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists iNRCORE, LLC. Its product description is FIXED IND 7.6UH 3.5A 30.8MOHM SM. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for PL9307T

Description：FIXED IND 7.6UH 3.5A 30.8MOHM SM
Series：PL93XX
Mfr：iNRCORE, LLC
Package：Tape & Reel (TR)
Type：-
Material - Core：-
Inductance：7.6 µH
Tolerance：±25%
Current Rating (Amps)：3.5 A
Current - Saturation (Isat)：4A
Shielding：Shielded
DC Resistance (DCR)：30.8mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-55°C ~ 130°C
Inductance Frequency - Test：-
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.410" L x 0.410" W (10.41mm x 10.41mm)
Height - Seated (Max)：0.157" (4.00mm)
Features：-

Fixed Inductors datasheet and documents for PL9307T

PL9307T

Fixed Inductors Overview

The iNRCORE PL9307T is a power inductor from the PL93xx series, featuring an inductance range of 0.62μH to 278μH and a maximum rated current of 7.6A. It utilizes a shielded drum core design with a compact footprint of 10.5mm x 10.5mm and a height of 4.0mm. The component operates within a temperature range of -55°C to +125°C and supports surface mount installation.

Fixed Inductors Feature Summary

Shielded drum core construction for superior performance under shock and vibration
Compact low-profile form factor suitable for space-constrained designs
Wide operating temperature range for harsh environment reliability

Fixed Inductors Applications

AC-DC converters
DC-DC converters

Fixed Inductors Procurement Notes

Verify the specific inductance value and tolerance required for the application against the datasheet specifications. Confirm that the 4.0mm height and 10.5mm x 10.5mm footprint align with the PCB layout constraints. Ensure the thermal management strategy supports the -55°C to +125°C operating range and the 7.6A current rating under actual load conditions.

Fixed Inductors Selection Notes

Select this component when high reliability under mechanical stress is required due to its robust PCB mounting structure. The shielded design minimizes electromagnetic interference, making it suitable for dense circuit layouts. Consider the 4.0mm profile if vertical space is limited compared to other series like PL83xx or PL85xx.

Fixed Inductors Part Context

iNRCORE manufactures high-reliability magnetic components for aerospace, industrial, and medical applications. The PL93xx series represents their shielded drum core inductors designed for durability in mission-critical systems, supporting both catalog and custom requirements.
