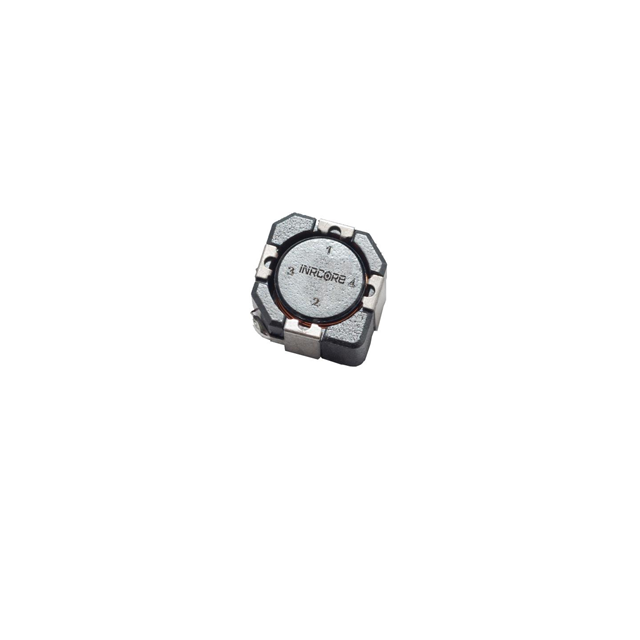

PL9316T is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists iNRCORE, LLC. Its product description is FIXED IND 150UH 880MA 500MOHM SM. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for PL9316T
- Description：FIXED IND 150UH 880MA 500MOHM SM
- Series：PL93XX
- Mfr：iNRCORE, LLC
- Package：Tape & Reel (TR)
- Type：-
- Material - Core：-
- Inductance：150 µH
- Tolerance：±20%
- Current Rating (Amps)：880 mA
- Current - Saturation (Isat)：1.15A
- Shielding：Shielded
- DC Resistance (DCR)：500mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-55°C ~ 130°C
- Inductance Frequency - Test：-
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.410" L x 0.410" W (10.41mm x 10.41mm)
- Height - Seated (Max)：0.157" (4.00mm)
- Features：-
Fixed Inductors datasheet and documents for PL9316T
Fixed Inductors Overview
The PL9316T is a shielded surface-mount power inductor from the iNRCORE PL93XX series, utilizing a ruggedized drum core design. It features a nominal inductance of 150 µH and a maximum DC resistance of 500 mΩ. The component supports a saturation current of 880 mA and operates within a temperature range of -40°C to +125°C. Constructed with a non-magnetic ferrite core and tin-plated terminals, it is optimized for high-frequency switching applications requiring compact footprint and reliable performance.
Fixed Inductors Feature Summary
- Shielded drum core construction minimizes electromagnetic interference
- Ruggedized design ensures reliability in demanding environments
- Surface-mount package facilitates automated assembly processes
Fixed Inductors Applications
- DC-DC converter output filtering
- Point-of-load regulation circuits
- Power supply input stages
Fixed Inductors Procurement Notes
Verify the specific ordering suffix against the manufacturer's official documentation to confirm exact electrical tolerances and packaging specifications. Ensure that the requested part number matches the required inductance value and current ratings for the target application circuit. Cross-reference the datasheet revision date to guarantee compliance with current manufacturing standards.
Fixed Inductors Selection Notes
Select this component based on its 150 µH inductance and 880 mA current handling capability. Consider the 500 mΩ DC resistance for efficiency calculations in low-power designs. Evaluate the physical dimensions and thermal characteristics to ensure compatibility with the printed circuit board layout and operating temperature requirements.
Fixed Inductors Part Context
The PL9316T belongs to the PL93XX series of shielded power inductors manufactured by iNRCORE, LLC. This series is characterized by its robust construction and suitability for space-constrained electronic designs. The components are engineered to provide stable performance across a wide temperature range, making them suitable for industrial and commercial power management systems.
Fixed Inductors Replacement Considerations
Consult the official iNRCORE cross-reference guide for verified substitute part numbers. Ensure any replacement maintains identical inductance, current ratings, and physical dimensions to preserve circuit functionality.
