PLA10AN3621R0D2B

Common Mode Chokes Overview

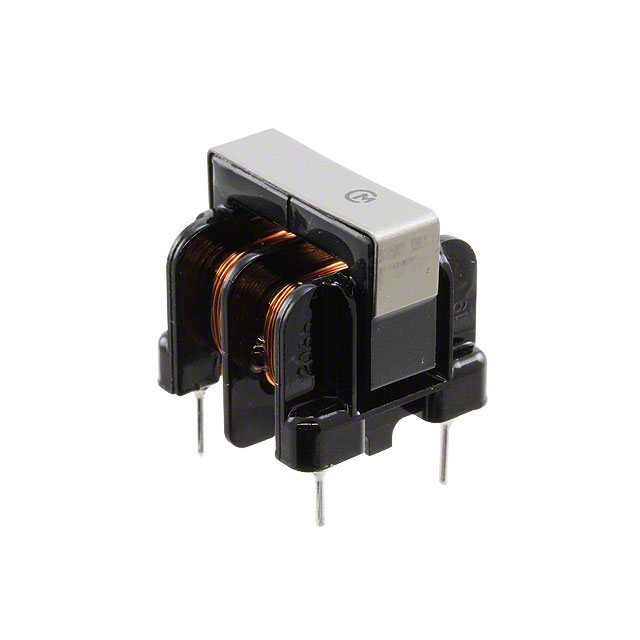

The PLA10AN3621R0D2B is a two-line common mode choke coil from the Murata PLA10 series, designed for AC applications. It features a through-hole mounting configuration with a rated current of 1.0 A and a DC resistance characteristic. The component provides high inductance within a compact form factor, suitable for noise suppression in electronic circuits.

Common Mode Chokes Feature Summary

• Compact size design enabling high inductance values
• Through-hole construction for secure PCB mounting
• Rated for 1.0 A AC common mode operation

Common Mode Chokes Applications

• AC power line noise filtering
• Common mode interference suppression in electronic assemblies

Common Mode Chokes Procurement Notes

Verify current availability status as this specific part number has been scheduled for obsolescence by the manufacturer. Confirm that alternative components meet the required electrical specifications and physical dimensions before finalizing procurement plans to ensure supply continuity.

Common Mode Chokes Selection Notes

Select this component when a compact through-hole common mode choke is required for AC lines with a 1.0 A current rating. Ensure the application environment supports the component's thermal characteristics and that the physical footprint aligns with the existing PCB layout constraints.

Common Mode Chokes Part Context

This component belongs to the PLA10 series of common mode chokes manufactured by Murata Electronics North America. The series is characterized by its ability to deliver high inductance in a small package, targeting efficient noise reduction in space-constrained electronic designs.

Common Mode Chokes Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Due to the scheduled obsolescence, engineers must identify equivalent components based on matching inductance, current rating, and mechanical specifications.
