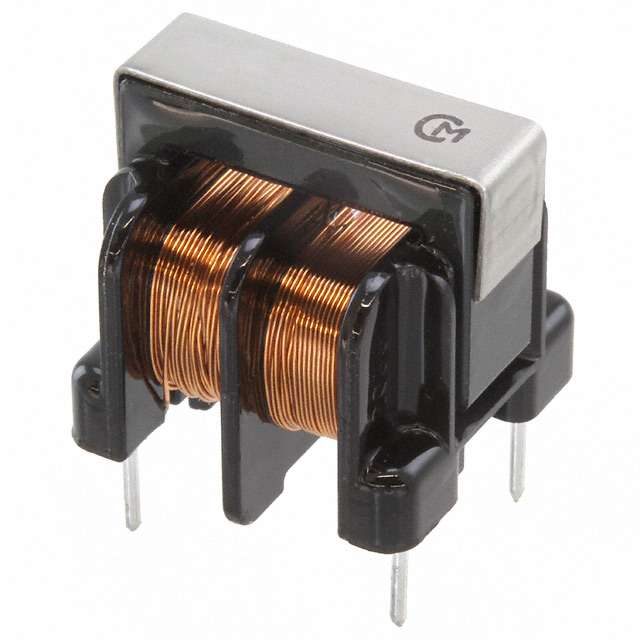

PLA10AS4330R3R2B

Description：CMC 300MA 2LN TH
Series：PLA10
Mfr：Murata Electronics
Package：Bulk

SKU:c9a32be14d33 Category: Common Mode Chokes Brand: Murata Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PLA10AS4330R3R2B is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Murata Electronics. Its product description is CMC 300MA 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for PLA10AS4330R3R2B

Description：CMC 300MA 2LN TH
Series：PLA10
Mfr：Murata Electronics
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：300mA
DC Resistance (DCR) (Max)：-
Voltage Rating - DC：250V
Voltage Rating - AC：-
Operating Temperature：-25°C ~ 60°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.709" L x 0.630" W (18.00mm x 16.00mm)
Height (Max)：0.689" (17.50mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：-
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for PLA10AS4330R3R2B

PLA10AS4330R3R2B

Common Mode Chokes Overview

The PLA10AS4330R3R2B is a two-line common mode choke from the Murata PLA10 series, designed for through-hole mounting. It features an inductance of 43 mH and supports a maximum DC current of 300 mA with a DC resistance of 4 Ohms. The component operates within a temperature range of -25°C to 60°C and has a DC voltage rating of 250V. Its physical dimensions are 18.00mm x 16.00mm x 17.50mm.

Common Mode Chokes Feature Summary

Provides common mode noise suppression for dual-line circuits
Designed for reliable through-hole PCB integration
Engineered for operation in industrial temperature environments

Common Mode Chokes Applications

Industrial control systems requiring EMI filtering
Power supply input stages for noise reduction
Data communication lines needing signal integrity protection

Common Mode Chokes Procurement Notes

Verify component status carefully as this item is classified as obsolete and scheduled for discontinuation by the manufacturer. Sourcing may be limited to existing stock or secondary markets. Confirm final availability and lead times directly with authorized distributors before committing to procurement plans.

Common Mode Chokes Selection Notes

Select this component only if its specific 43 mH inductance and 300 mA current rating align precisely with circuit requirements. Due to its obsolete status, evaluate alternative components from newer Murata series that offer similar electrical characteristics and improved long-term supply chain stability for new designs.

Common Mode Chokes Part Context

This part belongs to the Murata PLA10 series of common mode chokes, which are engineered for general-purpose electromagnetic interference suppression. The series utilizes robust construction suitable for through-hole applications, providing consistent performance across various electronic equipment categories requiring reliable noise filtration.

Common Mode Chokes Replacement Considerations

As the PLA10AS4330R3R2B is obsolete, identify direct substitutes from Murata's current portfolio. Ensure replacement parts match the 43 mH inductance, 300 mA current handling, and through-hole package dimensions to maintain mechanical and electrical compatibility without redesigning the PCB layout.
