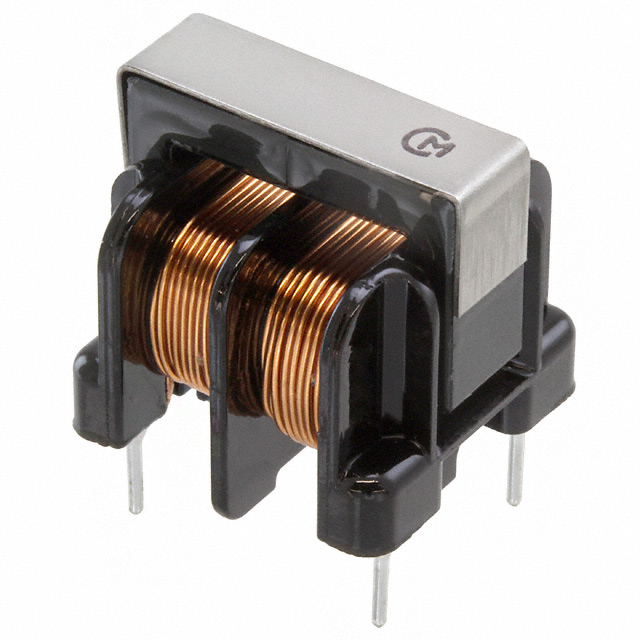

PLA10AS5521R0R2B

Description：CMC 1A 2LN TH
Series：PLA10
Mfr：Murata Electronics
Package：Bulk

SKU:ff641b21da3d Category: Common Mode Chokes Brand: Murata Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PLA10AS5521R0R2B is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Murata Electronics. Its product description is CMC 1A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for PLA10AS5521R0R2B

Description：CMC 1A 2LN TH
Series：PLA10
Mfr：Murata Electronics
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1A
DC Resistance (DCR) (Max)：-
Voltage Rating - DC：250V
Voltage Rating - AC：-
Operating Temperature：-25°C ~ 60°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.709" L x 0.630" W (18.00mm x 16.00mm)
Height (Max)：0.689" (17.50mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：-
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for PLA10AS5521R0R2B

PLA10AS5521R0R2B

Common Mode Chokes Overview

The PLA10AS5521R0R2B is a two-line common mode choke manufactured by Murata Electronics, designed for through-hole mounting. It features an inductance of 5.5 mH and supports a maximum DC current of 1 A. The component has a rated voltage of 250 VAC and a maximum DC resistance of 0.2 Ω. Its physical dimensions are 18.00 mm in length, 16.00 mm in width, and a maximum height of 17.50 mm. The operating temperature range spans from -25°C to +60°C.

Common Mode Chokes Feature Summary

Provides common mode noise suppression for two-line circuits
Constructed with ceramic materials for high reliability
Designed to withstand harsh working conditions

Common Mode Chokes Applications

Engine control systems
Electronic power steering systems
XEV (Extended-range Electric Vehicle) drive trains

Common Mode Chokes Procurement Notes

Verify the specific part number against official Murata documentation to ensure accuracy. Confirm that the required electrical parameters, including inductance and current ratings, match the design specifications. Check for RoHS compliance status if environmental regulations apply. Ensure the through-hole package dimensions fit the target PCB layout. Validate the operating temperature range against the intended application environment.

Common Mode Chokes Selection Notes

Select this component when a 5.5 mH inductance and 1 A current handling capability are required for common mode filtering. Consider the through-hole mounting style and radial lead configuration for assembly compatibility. Evaluate the 250 VAC voltage rating against the circuit's operational requirements. Assess the physical size constraints to ensure the 18x16x17.5 mm footprint fits within the enclosure. Verify thermal performance within the -25°C to +60°C range.

Common Mode Chokes Part Context

This component belongs to the PLA10 series of common mode chokes produced by Murata Electronics. The series utilizes ceramic materials to achieve high reliability and durability. These components are specifically engineered for automotive applications, particularly in transmission systems where robust performance under varying conditions is essential.
