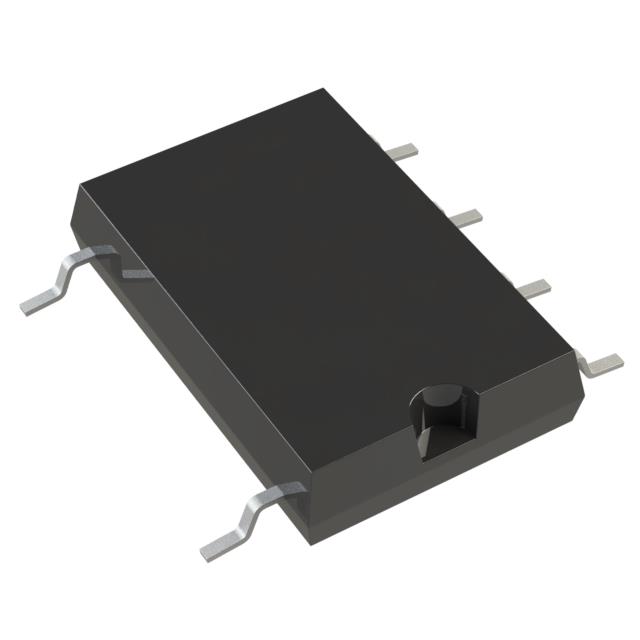

PLA171PTR

PLA171PTR is listed in the Solid State Relays (SSR) range at ChipApex. The manufacturer field lists Littelfuse Inc.. Its product description is SSR RELAY SPST-NO 100MA 0-800V. Review the specifications below when checking this part for your BOM.

Solid State Relays (SSR) specifications for PLA171PTR

• Description：SSR RELAY SPST-NO 100MA 0-800V
• Series：PLA, OptoMOS®
• Mfr：Littelfuse Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Mounting Type：Surface Mount
• Circuit：SPST-NO (1 Form A)
• Output Type：AC, DC
• Voltage - Input：1.2VDC
• Voltage - Load：0 V ~ 800 V
• Load Current：100 mA
• Termination Style：Gull Wing
• Package / Case：8-SMD (0.300", 7.62mm), 6 Leads
• Supplier Device Package：6-Flatpack
• On-State Resistance (Max)：50 Ohms
• Grade：-
• Qualification：-
• Operating Temperature：-40°C ~ 85°C
• Approval Agency：CSA, EN, UL

Solid State Relays (SSR) datasheet and documents for PLA171PTR
