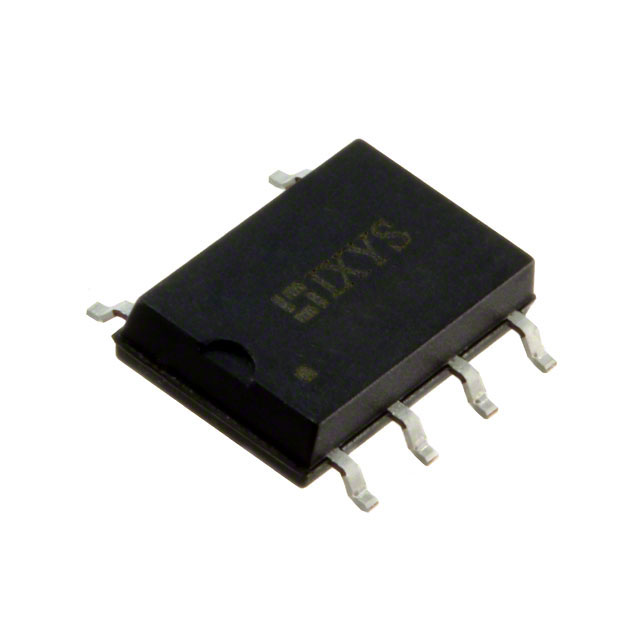

PLB171PTR

PLB171PTR is listed in the Solid State Relays (SSR) range at ChipApex. The manufacturer field lists Littelfuse Inc.. Its product description is SSR RELAY SPST-NC 80MA 0-800V. Review the specifications below when checking this part for your BOM.

Solid State Relays (SSR) specifications for PLB171PTR

• Description：SSR RELAY SPST-NC 80MA 0-800V
• Series：PLB, OptoMOS®
• Mfr：Littelfuse Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Mounting Type：Surface Mount
• Circuit：SPST-NC (1 Form B)
• Output Type：AC, DC
• Voltage - Input：1.2VDC
• Voltage - Load：0 V ~ 800 V
• Load Current：80 mA
• Termination Style：Gull Wing
• Package / Case：8-SMD (0.300", 7.62mm), 6 Leads
• Supplier Device Package：6-Flatpack
• On-State Resistance (Max)：55 Ohms
• Grade：-
• Qualification：-
• Operating Temperature：-40°C ~ 85°C
• Approval Agency：EN, UL

Solid State Relays (SSR) datasheet and documents for PLB171PTR
