PLBT5E-WCY06-DP1

LED Indication - Discrete Overview

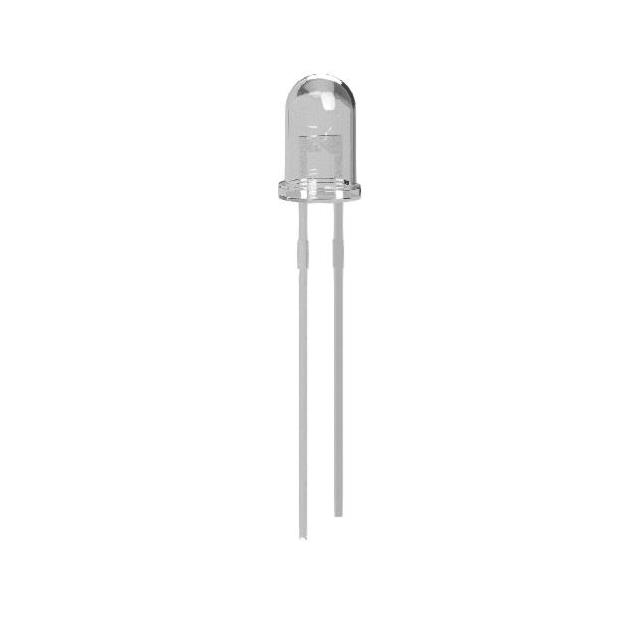

The PLBT5E-WCY06-DP1 is a discrete amber LED from P-tec Corporation, featuring a T-1 3/4 (5mm) round domed lens. It emits light at a dominant wavelength of 590nm with a peak wavelength of 585nm. The component operates with a typical forward voltage of 1.9V and is tested at 20mA. It offers a 30-degree viewing angle and measures 8.70mm in maximum height. The lens material is colorless, and the device is RoHS compliant.

LED Indication - Discrete Feature Summary

• Optimal optical and mechanical design for reliable performance
• Ultra-bright amber emission characteristics
• Radial lead configuration for standard mounting

LED Indication - Discrete Applications

• Panel indicator lighting
• Status indication in electronic equipment
• Control panel signaling

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix DP1 against the manufacturer's current product specification to ensure compatibility with required lens style and packaging. Confirm that the RoHS compliance status matches project requirements. Cross-reference the datasheet revision date to validate electrical parameters such as forward voltage and test current before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when an amber indicator with a 5mm T-1 3/4 form factor is required. The 1.9V forward voltage suggests suitability for low-voltage logic circuits. Ensure the 30-degree viewing angle meets visibility requirements. Verify that the 8.70mm height fits within the designated enclosure space without interference.

LED Indication - Discrete Part Context

This part belongs to P-tec's discrete LED lineup, characterized by optimal optical and mechanical design principles. The PLBT5E series utilizes specific chip technologies to achieve high brightness in a radial package. The model designation includes specific codes for lens type and color, distinguishing it from other variants in the same family.

LED Indication - Discrete Replacement Considerations

Direct substitutes must match the 5mm T-1 3/4 radial package, 590nm dominant wavelength, and similar forward voltage. Verify pinout compatibility and thermal characteristics. No specific alternative part numbers are publicly confirmed in the provided documentation.
