PLF-11B2-6A-Q-R5

Overview

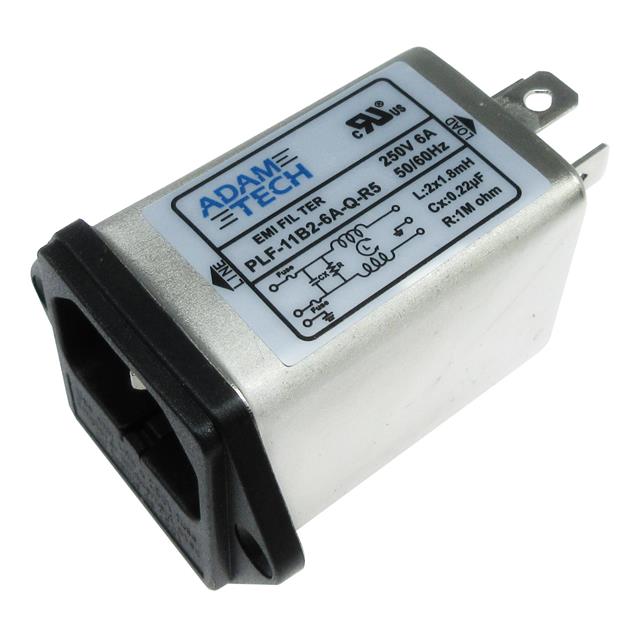

The PLF-11B2-6A-Q-R5 is a single-phase EMI/RFI line filter module manufactured by Adam Tech. It features a fused inlet socket with flange mounting for secure panel installation. The component supports voltage ratings of 115 VAC and 250 VAC, with a current rating of 6 A. It operates at frequencies between 50 Hz and 60 Hz. The filter includes an inductance value of 1.8 mH. It holds cURus safety approvals.

Feature Summary

• Integrated fuse protection within the inlet socket design
• Flange mounting style for stable panel installation
• Single-stage EMC/EMI filtering capability

Applications

• Industrial equipment power input stages
• Medical device power supplies
• Communication infrastructure hardware

Procurement Notes

Verify the specific voltage rating (115V or 250V) required for your application against the datasheet specifications. Confirm that the 6A current rating meets system demands. Ensure the flange mounting dimensions align with the enclosure design. Check for cURus certification requirements in target markets.

Selection Notes

Select this component when a compact, fused EMI filter is needed for single-phase AC lines. It is suitable for applications requiring panel-mount solutions with integrated overcurrent protection. Consider the 1.8 mH inductance for noise suppression levels. Verify compatibility with 50/60Hz operation frequencies.

Part Context

This part belongs to the PLF-11 Series from Adam Tech, designed as power line filter modules. These components are engineered for electromagnetic interference reduction in AC power inputs. The series offers various current and voltage configurations to suit different electronic equipment standards.

Replacement Considerations

Consult official Adam Tech documentation for direct cross-references. Verify pinout and mounting hole patterns before substituting. Ensure replacement parts meet identical electrical ratings and safety certifications.
