PLF-11B3-10A-Q

Overview

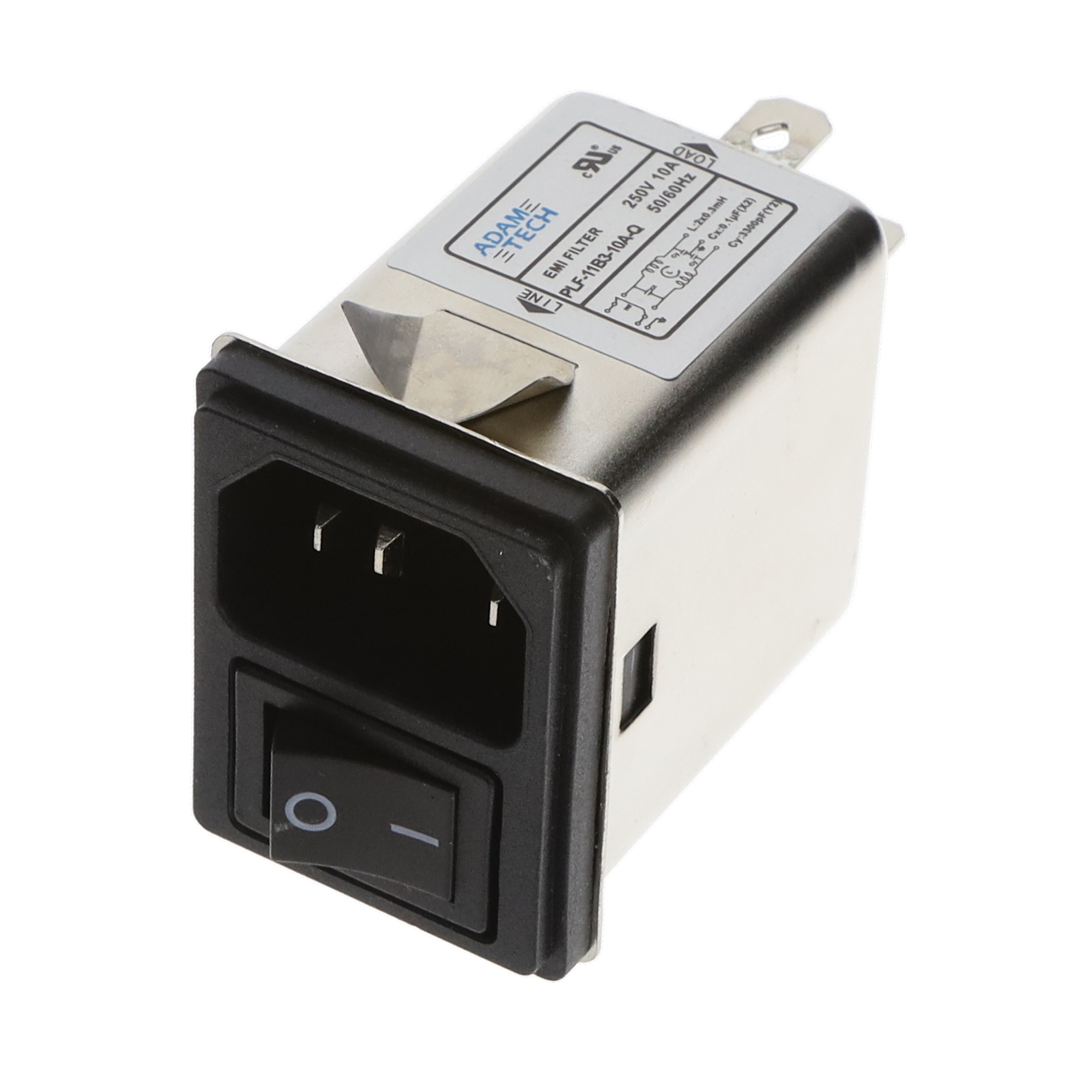

The PLF-11B3-10A-Q is a single-phase EMI/RFI power line filter module manufactured by Adam Tech. It supports voltage ratings of 115 VAC and 250 VAC with a current rating of 10 A. Designed for panel mounting, it utilizes quick connect terminals for electrical termination. The component operates at frequencies of 50 Hz and 60 Hz and complies with CURUS standards.

Feature Summary

• Single-stage EMI/RFI filtering capability for AC power lines
• Snap-in panel mount design for secure installation
• Quick connect terminal interface for simplified wiring

Applications

• Power supplies
• Battery chargers
• Portable devices
• Energy-efficient systems

Procurement Notes

Verify the specific datasheet version to confirm compliance certifications such as CURUS. Ensure the quick connect terminal type matches the mating connector specifications in the target assembly. Confirm that the snap-in panel mount dimensions align with the enclosure cutout requirements before finalizing procurement.

Selection Notes

Select this model when a compact, single-phase EMI filter is required for 10 A applications. The snap-in mounting style simplifies integration into panels compared to chassis mount alternatives. Verify that the operating frequency range of 50/60 Hz meets the system requirements.

Part Context

This component belongs to the PLF series of power line filters from Adam Tech. The series includes various configurations for different current ratings and mounting styles. This specific part represents a filtered power entry module designed for general electronic equipment requiring noise suppression on AC inputs.

Replacement Considerations

Cross-reference with other Adam Tech PLF series parts for similar current ratings. Verify terminal compatibility and mounting hole patterns when considering alternative suppliers or updated revisions within the same product family.
