Product Detailed Parameters
- Description：LINE FLTR 115/250VAC 10A PANEL
- Series：PLF
- Mfr：Adam Tech
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：10:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：cURus
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Panel Mount
- Termination Style：IEC 320-C14, Quick Connect
- Inductance：300µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

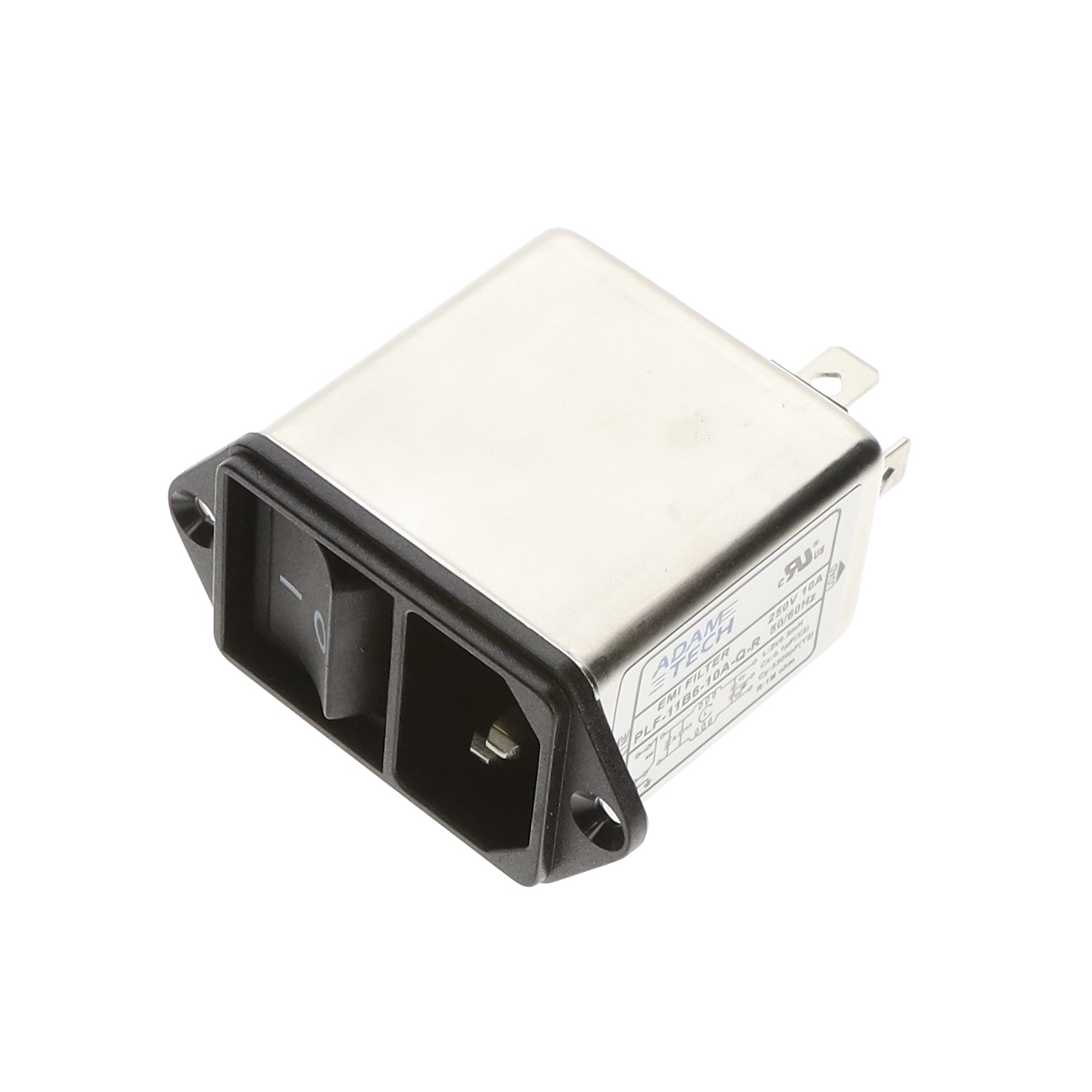

The PLF-11B6-10A-Q-R is a single-phase EMI/RFI line filter from Adam Tech, rated for 10 A at 115 VAC and 250 VAC. It operates at 50 Hz or 60 Hz and features vertical flange mount installation with quick connect termination. The module integrates an IEC 320-C14 inlet, a switch, and a fuse for comprehensive power entry management.
Feature Summary
- Integrates EMI filtering with power switching and overcurrent protection in a single chassis-mounted unit
- Utilizes standard IEC 320-C14 connector interface for universal compatibility with power cords
- Employs quick-connect terminals to facilitate rapid assembly onto printed circuit boards
Applications
- Industrial control panels requiring filtered AC power entry
- Medical equipment needing certified safety isolation and noise suppression
- Test and measurement instruments demanding stable power supply integrity
Procurement Notes
Verify the specific suffix Q-R against the manufacturer's current datasheet to confirm terminal type and internal component configuration. Ensure the voltage rating aligns with your regional mains supply standards. Confirm that the flange dimensions match your enclosure cutout requirements before finalizing procurement.
Selection Notes
Select this model when space constraints require combining filtering, switching, and fusing functions into one compact module. The vertical flange design suits panel mounts where horizontal depth is limited. Ensure the 10 A current rating exceeds the maximum load of the connected equipment to prevent thermal overload during continuous operation.
Part Context
This component belongs to the PLF series of power line filters designed by Adam Tech. These modules are engineered to meet international safety standards, including UL and IEC certifications. The series offers various configurations to address different mounting styles and electrical ratings for global electronic manufacturing needs.
Replacement Considerations
Direct substitutes include other Adam Tech PLF series modules with identical 10 A ratings and C14 interfaces, such as PLF-11B1-10A-Q-R or PLF-11C4-10A-Q-R, provided the mounting style and terminal types are compatible with the existing PCB layout.
