Product Detailed Parameters
- Description：LINE FLTR 115/250VAC 2A PANEL
- Series：PLF
- Mfr：Adam Tech
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：2:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：cURus
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Panel Mount
- Termination Style：IEC 320-C14, Quick Connect
- Inductance：4mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

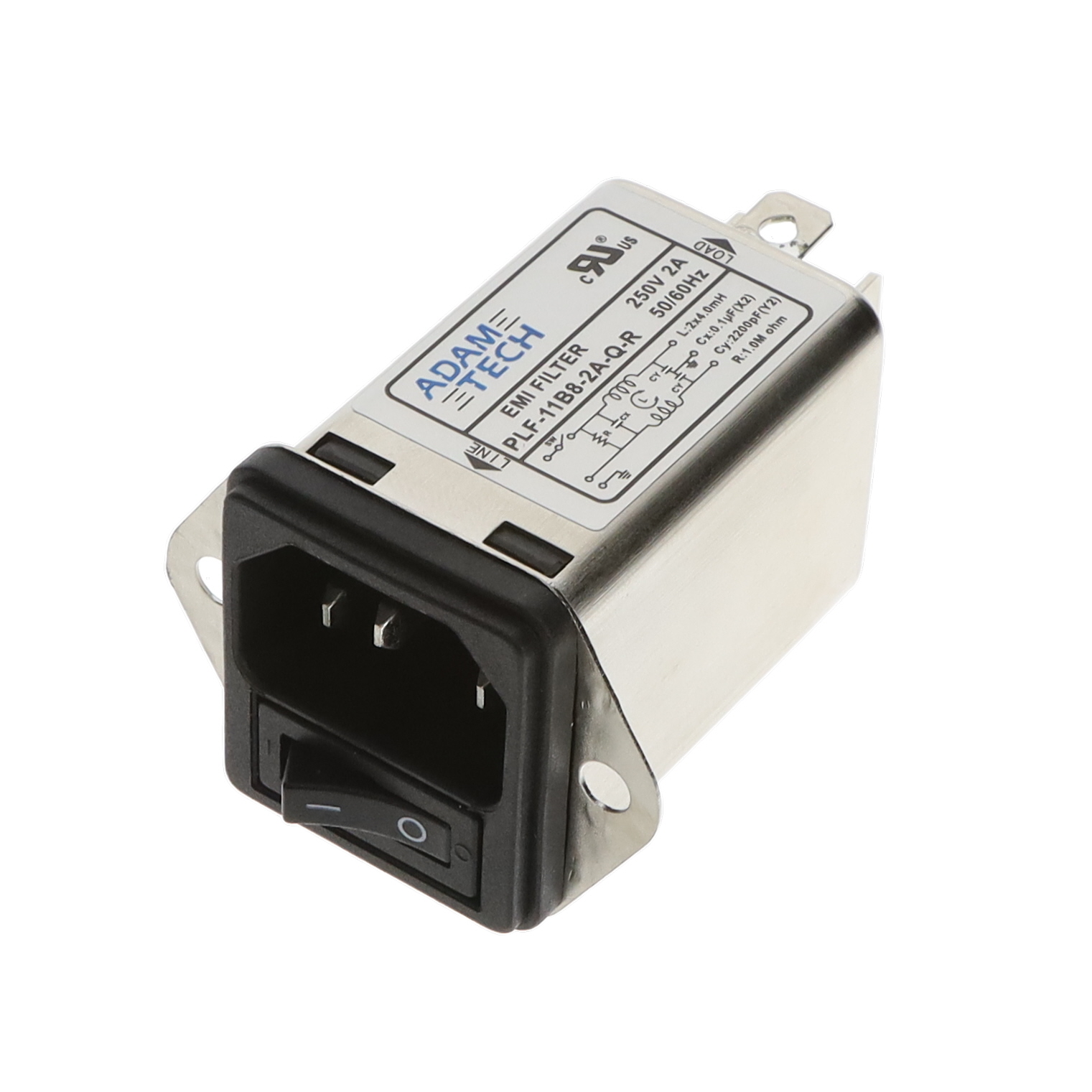

The PLF-11B8-2A-Q-R is a single-phase EMI/RFI power line filter module manufactured by Adam Tech. It supports an AC voltage range of 115V to 250V and handles a maximum current of 2 Amperes at 50/60Hz frequencies. The unit features a flanged panel mount design for secure installation and utilizes faston .250-inch (6.35mm) quick-connect terminals for electrical interfacing. This filtered power entry module integrates standard filtering capabilities within a compact form factor, suitable for applications requiring noise suppression in AC power inputs.
Feature Summary
- Integrated single-stage EMI/RFI filtering for AC power lines
- Flanged panel mount construction for mechanical stability
- Faston .250-inch quick-connect terminal interface
Applications
- Industrial equipment power entry points
- Communication system power supplies
- Medical device AC input stages
Procurement Notes
Verify the specific suffix 'Q-R' against the manufacturer's latest documentation to confirm terminal type and mounting configuration. Ensure the application environment remains within the specified 115V to 250V AC and 2A current limits. Confirm that the flanged mounting hole dimensions match the chassis design prior to procurement.
Selection Notes
Select this component when a compact, single-phase EMI filter with quick-connect terminals is required. The 2A rating suits low-power devices, while the flanged mount provides robust physical attachment. Consider the .250-inch terminal width for PCB or wire harness compatibility during the design phase.
Part Context
This part belongs to the Adam Tech PLF series of filtered power entry modules. These components are designed to suppress electromagnetic interference in AC power circuits. The series offers various current ratings and mounting options to accommodate different enclosure sizes and electrical requirements across industrial and commercial sectors.
Replacement Considerations
Cross-reference with other Adam Tech PLF models sharing the same current rating and terminal style. Verify that substitute parts maintain identical flange dimensions and filtering performance characteristics to ensure mechanical and electrical compatibility.
