Product Detailed Parameters
- Description：LINE FLTR 115/250VAC 10A PANEL
- Series：PLF
- Mfr：Adam Tech
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：10:00 AM
- Frequency - Operating：50 ~ 60Hz
- Applications：-
- Approval Agency：cURus
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Panel Mount
- Termination Style：Quick Connect
- Inductance：300µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

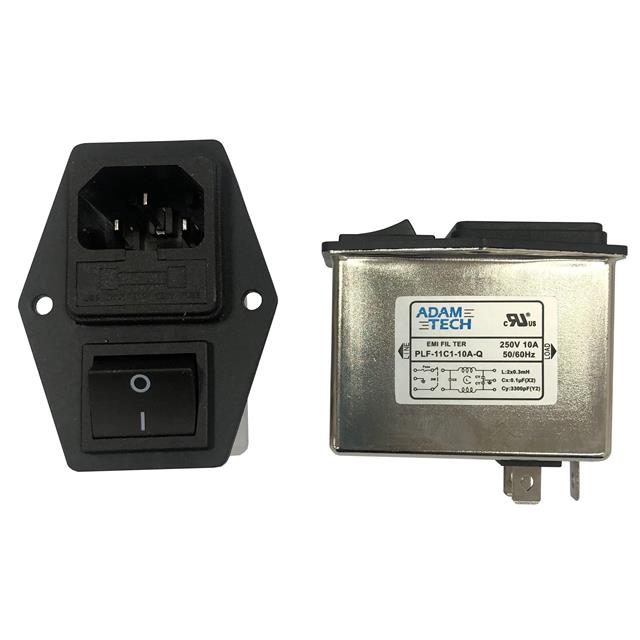

The Adam Tech PLF-11C1-10A-Q is a single-phase EMI/RFI line filter module designed for AC power line applications. It features a current rating of 10 A and voltage ratings of 115 VAC and 250 VAC, operating at frequencies of 50 Hz and 60 Hz. The unit utilizes quick connect termination methods and includes an integrated fuse and switch within its flanged module construction.
Feature Summary
- Integrates EMI/RFI filtering with a built-in fuse and switch in a single compact module
- Features a flanged design for secure panel or chassis mounting
- Utilizes quick connect terminals for simplified circuit integration
Applications
- Single-phase AC power line noise suppression
- Equipment requiring integrated power switching and protection
- Chassis-mounted electronic systems
Procurement Notes
Verify the specific datasheet version to confirm exact terminal dimensions and fuse specifications. Ensure compatibility with the intended panel cutout dimensions due to the flanged mounting style. Confirm that the quick connect terminals match the wiring harness requirements for the target application.
Selection Notes
Select this component when a combined solution for filtering, switching, and overcurrent protection is required in a single phase. The flanged form factor suits direct panel installation. Verify that the 10 A current rating meets the load requirements and that the quick connect interface aligns with existing assembly processes.
Part Context
This part belongs to the Adam Tech PLF series of power line filters. It is distinct from other variants like the PLF-12E4-20A-S-R which may differ in current capacity, mounting style, or termination type. The PLF-11C1-10A-Q specifically denotes the 10 A rating and quick connect configuration within the product family.
Replacement Considerations
Cross-reference with other Adam Tech PLF series modules such as the PLF-11A1-10A-Q for similar functionality but potentially different inlet socket configurations. Verify mechanical fit and electrical ratings before substituting with generic EMI filters lacking integrated switches.
