PLF-11C2-10A-Q-R5

Overview

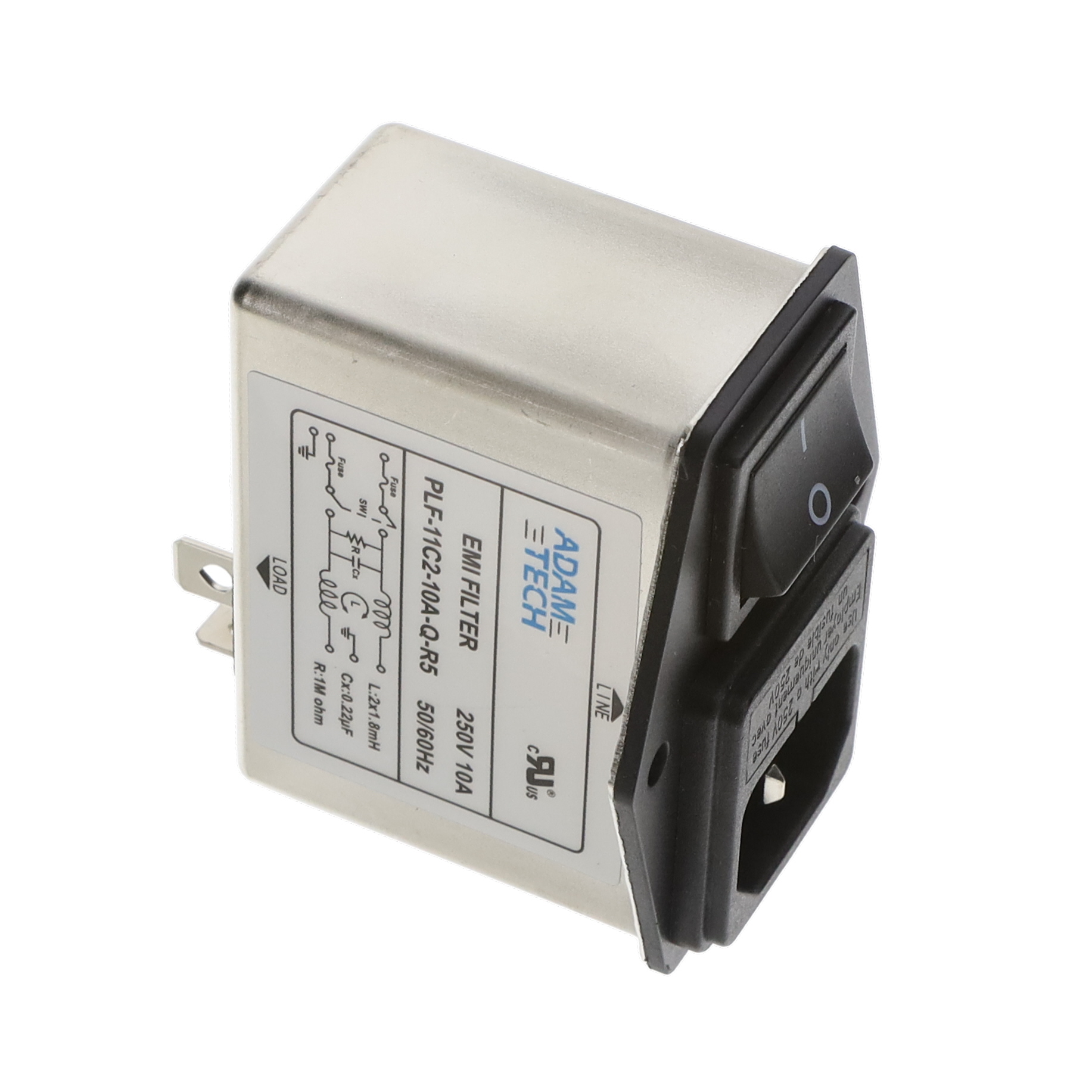

The PLF-11C2-10A-Q-R5 is a single-phase EMI/RFI line filter module manufactured by Adam Tech. It supports rated voltages of 115 VAC and 250 VAC with a current rating of 10 A. The unit features an inductance of 1.8 mH and operates within a frequency range of 50 Hz to 60 Hz. Designed for vertical flange mounting, it utilizes quick connect terminals for circuit attachment. The component is certified as medical grade and includes dual fuses and a switch configuration.

Feature Summary

• Medical grade construction compliant with safety standards
• Integrated dual fuse and switch functionality
• Single-stage EMI/RFI noise suppression
• Vertical flange chassis mount design

Applications

• Medical equipment power entry
• Industrial control systems
• Communication infrastructure

Procurement Notes

Verify the specific ordering suffix against the manufacturer's latest documentation to ensure correct terminal type and certification status. Confirm that the medical grade designation meets the regulatory requirements of the target application region. Check for any recent updates to the datasheet regarding compliance certifications or pinout configurations before finalizing procurement.

Selection Notes

Select this component when a filtered power entry module with integrated switching and protection is required for space-constrained vertical installations. The 10 A rating and 1.8 mH inductance suit applications needing moderate noise attenuation at standard mains frequencies. Ensure the quick connect interface matches the upstream wiring harness specifications.

Part Context

This part belongs to the PLF series of AC power entry modules from Adam Tech. The series offers various configurations including filtered and unfiltered options with different mounting styles. The PLF-11C2 variant specifically denotes a filtered module with quick connect terminals and flange mounting capabilities.

Replacement Considerations

Cross-reference with other Adam Tech PLF series models such as PLF-11A1-10A-Q for similar electrical characteristics but potentially different terminal types. Verify mechanical dimensions and mounting hole patterns to ensure compatibility with existing chassis designs.
