Product Detailed Parameters
- Description：LINE FLTR 115/250VAC 6A PANEL
- Series：PLF
- Mfr：Adam Tech
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：6:00 AM
- Frequency - Operating：50/60Hz
- Applications：Medical
- Approval Agency：cURus
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Panel Mount
- Termination Style：IEC 320-C14, Quick Connect
- Inductance：4mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

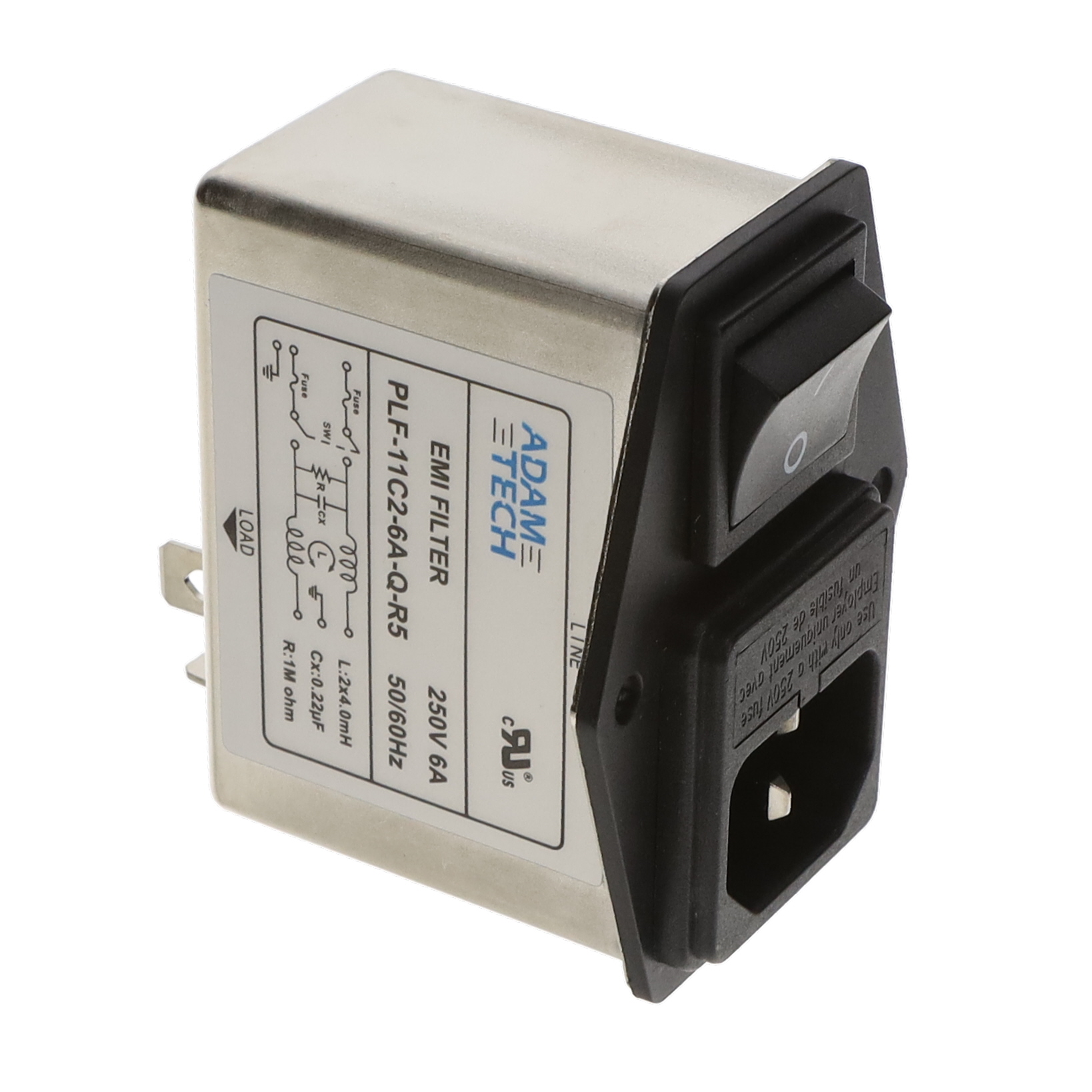

The PLF-11C2-6A-Q-R5 is a single-phase EMI/RFI line filter module manufactured by Adam Tech. It supports voltage ratings of 115 VAC and 250 VAC with a current rating of 6 A. The unit operates at frequencies of 50 Hz and 60 Hz and features an inductance of 4 mH. Designed for panel mounting, it utilizes IEC 320-C14 connectors with quick-connect terminals.
Feature Summary
- Single-stage EMI/RFI filtering for single-phase AC power lines
- Integrated IEC 320-C14 inlet connector for direct equipment interface
- Quick-connect terminal configuration for simplified wiring
- Chassis or panel mount design for secure installation
Applications
- Industrial control systems requiring EMI suppression
- Medical equipment power input stages
- Communication infrastructure power supplies
- Military and aerospace electronic assemblies
Procurement Notes
Verify the specific suffix Q-R5 to confirm the inclusion of quick-connect terminals and IEC 320-C14 compatibility. Confirm that the 6 A current rating aligns with the system load requirements. Ensure the 4 mH inductance meets the necessary attenuation specifications for the target application environment.
Selection Notes
Select this component when a compact, single-phase filter with integrated inlet connectivity is required. The 6 A rating suits moderate power applications. Verify that the panel mounting style fits the enclosure constraints. Ensure the operating temperature range covers the expected environmental conditions.
Part Context
This part belongs to the PLF series of power line filters from Adam Tech. The series provides various configurations for EMI suppression in AC power circuits. The PLF-11C2 variant specifically denotes the 6 A current rating and panel mount form factor within the product family.
Replacement Considerations
Cross-reference with PLF-11B2-6A-Q-R5 for similar specifications but different inductance values. Verify compatibility with PLF-11C2-10A-Q-R5 if higher current capacity is needed, noting the increased amperage rating.
