PLF-11C4-10A-Q-R

Overview

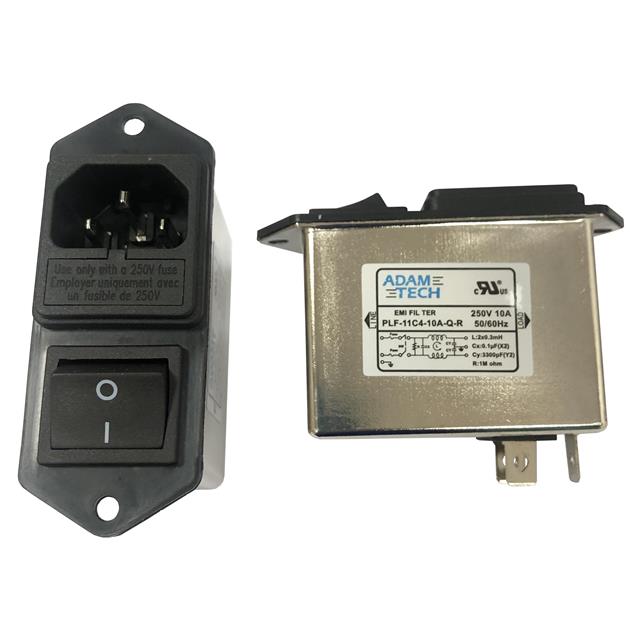

The PLF-11C4-10A-Q-R is a single-phase EMI/RF line filter module manufactured by Adam Tech. It features a current rating of 10 A and voltage ratings of 115 VAC or 250 VAC, operating at frequencies of 50 Hz to 60 Hz. The component utilizes quick connect terminals for circuit attachment and employs a flanged mounting style suitable for panel installation. This power entry module integrates filtering capabilities within a compact form factor designed for AC power line applications.

Feature Summary

• Single-stage EMI/RFI filtering for AC power lines
• Quick connect terminal interface for simplified wiring
• Flanged chassis mount design for secure panel installation

Applications

• Industrial equipment power entry
• Medical device power supplies
• Communication infrastructure units

Procurement Notes

Verify the specific ordering suffix against the manufacturer's latest datasheet to confirm terminal type and mounting configuration. Ensure compliance with regional safety standards such as UL or IEC requirements for the intended end-use environment. Cross-reference the part number with official Adam Tech documentation to validate electrical ratings before integration into system designs.

Selection Notes

Select this component when a single-phase filtered power entry solution with quick-connect termination is required. The flanged mounting style supports direct panel installation, while the 10 A rating suits moderate power loads. Confirm that the operating frequency range of 50/60 Hz aligns with the local power grid specifications for the target application region.

Part Context

This model belongs to the Adam Tech PLF series of power line filters. These modules are engineered to suppress electromagnetic interference in AC power circuits. The series offers various configurations tailored for different current ratings and mounting styles, providing standardized solutions for noise reduction in sensitive electronic systems requiring certified power entry components.

Replacement Considerations

Consult Adam Tech technical support for verified cross-references. Ensure substitute parts match the 10 A current rating, 115/250 VAC voltage limits, and quick connect terminal interface to maintain mechanical and electrical compatibility without redesigning the enclosure or wiring harness.
