Product Detailed Parameters
- Description：LINE FLTR 115/250VAC 10A PANEL
- Series：PLF
- Mfr：Adam Tech
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：10:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：cURus
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Panel Mount
- Termination Style：IEC 320-C14, Quick Connect
- Inductance：300µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

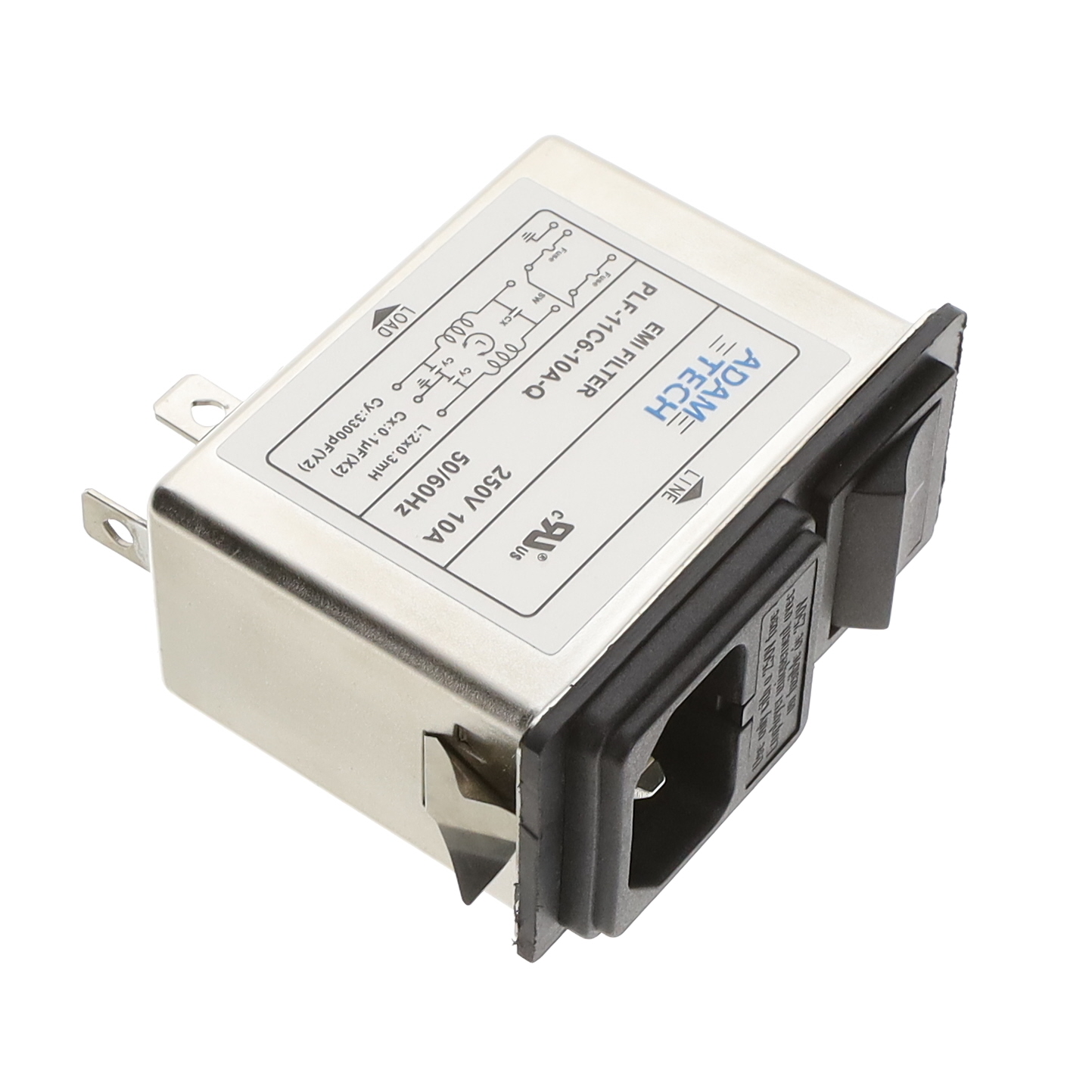

The PLF-11C6-10A-Q is a single-phase EMI/RF line filter module manufactured by Adam Tech. It supports voltage ratings of 115 VAC and 250 VAC with a current capacity of 10 A. The unit operates at frequencies of 50 Hz and 60 Hz. It features a flanged panel mount style with snap-in installation. Electrical connections utilize quick connect terminals, specifically IEC 320-C14 inputs. The module includes dual fuses and an integrated switch for enhanced safety and control.
Feature Summary
- Integrated dual fuse protection and power switch
- Snap-in flanged chassis mounting design
- Single-stage EMI/RFI noise suppression
- Quick connect terminal interface
Applications
- Industrial equipment power entry
- Medical device power supplies
- Communication infrastructure units
- Consumer electronics AC input stages
Procurement Notes
Verify the specific terminal configuration matches the system requirements before integration. Confirm that the internal fuse ratings align with downstream circuit protection needs. Ensure the mounting hole dimensions correspond to the enclosure design. Check local regulatory compliance certifications such as UL or CUL for the target market. Validate thermal management capabilities under maximum load conditions.
Selection Notes
Choose this component when a compact, filtered power entry solution with built-in switching is required. The 10 A rating suits moderate power applications. The snap-in design simplifies assembly compared to screw-mount alternatives. Consider the physical footprint constraints of the housing. Evaluate if the integrated switch functionality meets operational safety standards for the end product.
Part Context
This part belongs to the PLF series of power line filters from Adam Tech. These modules are designed to reduce electromagnetic interference in AC power lines. The series offers various current ratings and mounting options. The PLF-11C6-10A-Q represents a specific configuration within this family, focusing on 10 A capacity with integrated safety components.
Replacement Considerations
Cross-reference with other Adam Tech PLF series modules for similar current ratings. Verify compatibility with existing PCB layouts or wire harnesses. Ensure replacement parts maintain identical voltage and frequency specifications. Check for equivalent certification marks to avoid regulatory issues.
