Product Detailed Parameters
- Description：LINE FLTR 115/250VAC 6A PANEL
- Series：PLF
- Mfr：Adam Tech
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：6:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：cURus
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Panel Mount
- Termination Style：IEC 320-C14, Quick Connect
- Inductance：800µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

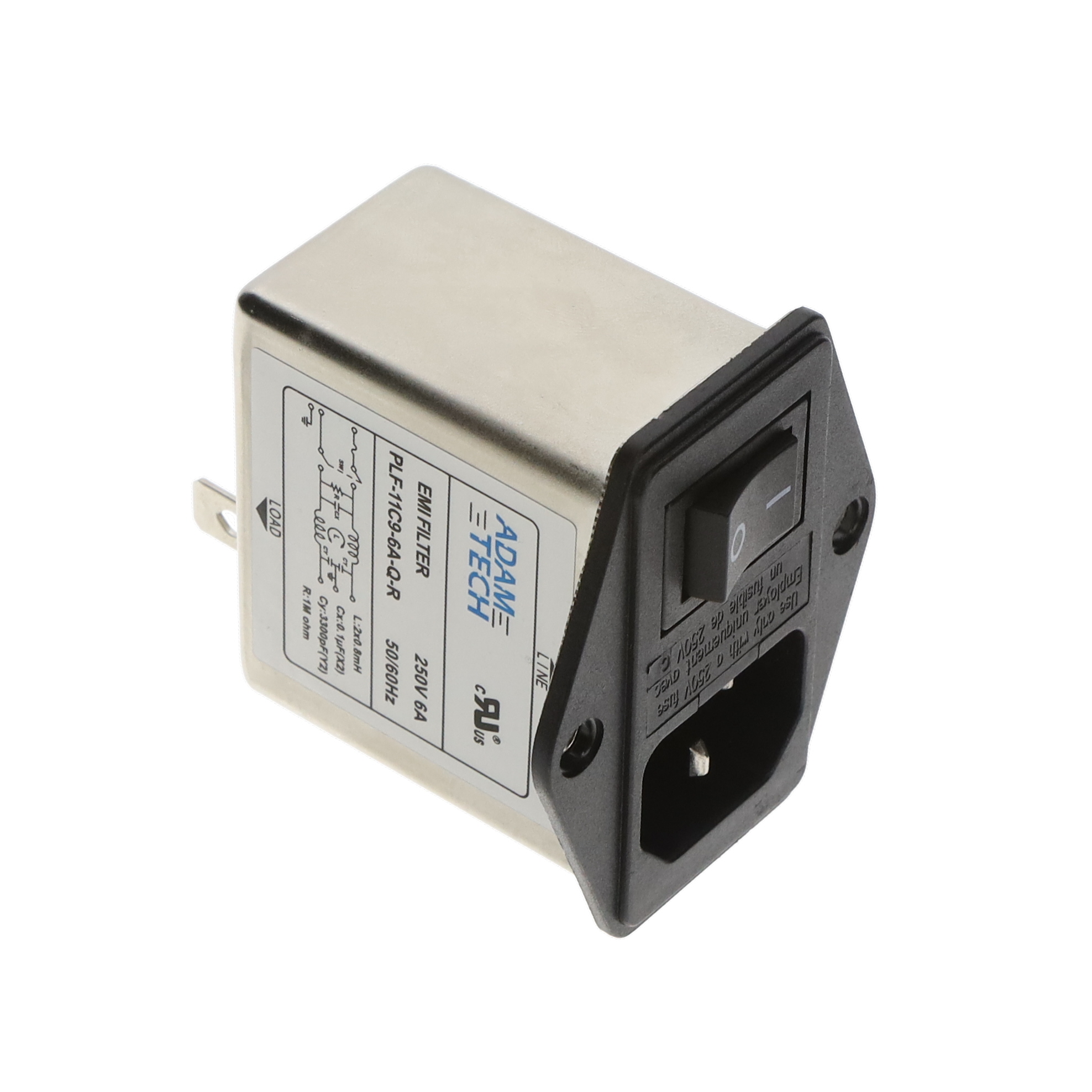

The PLF-11C9-6A-Q-R is a single-phase EMI/RFI power line filter module manufactured by Adam Tech. It operates within a voltage range of 115VAC to 250VAC and supports a current rating of 6A at frequencies of 50Hz or 60Hz. The component features quick connect terminals for circuit board attachment and includes an integrated IEC 320-C14 inlet connector. Designed for flange mounting, it provides electromagnetic interference suppression in AC power entry applications.
Feature Summary
- Integrates a single-stage EMI/RFI filter with an IEC 320-C14 inlet
- Utilizes quick connect termination for efficient PCB assembly
- Supports flange mounting for secure chassis installation
Applications
- Single-phase AC power entry modules
- Electromagnetic interference suppression in electronic equipment
- Chassis-mounted power supply inputs
Procurement Notes
Verify the specific suffix Q-R against official Adam Tech documentation to confirm terminal type and mounting configuration. Ensure compatibility with the target IEC 320-C14 receptacle interface. Confirm that the 6A current rating and 250VAC voltage limit align with the system's electrical requirements before procurement.
Selection Notes
Select this component when a compact, single-phase solution with integrated inlet and filtering is required. The quick connect feature simplifies assembly compared to screw clamp variants. Verify that the flange mount style matches the enclosure design constraints and that the 6A rating suffices for the load.
Part Context
This part belongs to the Adam Tech PLF series of power line filters. These components are designed to reduce conducted emissions and improve immunity in AC power circuits. The series offers various current ratings and mounting options to suit different industrial and commercial power entry needs.
Replacement Considerations
Consult Adam Tech datasheets for direct substitutes within the PLF series. Verify pinout compatibility and mechanical dimensions before replacing with other manufacturers' equivalents.
