Product Detailed Parameters
- Description：LINE FLTR 115/250VAC 10A PANEL
- Series：PLF
- Mfr：Adam Tech
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：10:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：cURus
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Panel Mount
- Termination Style：Quick Connect
- Inductance：300µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

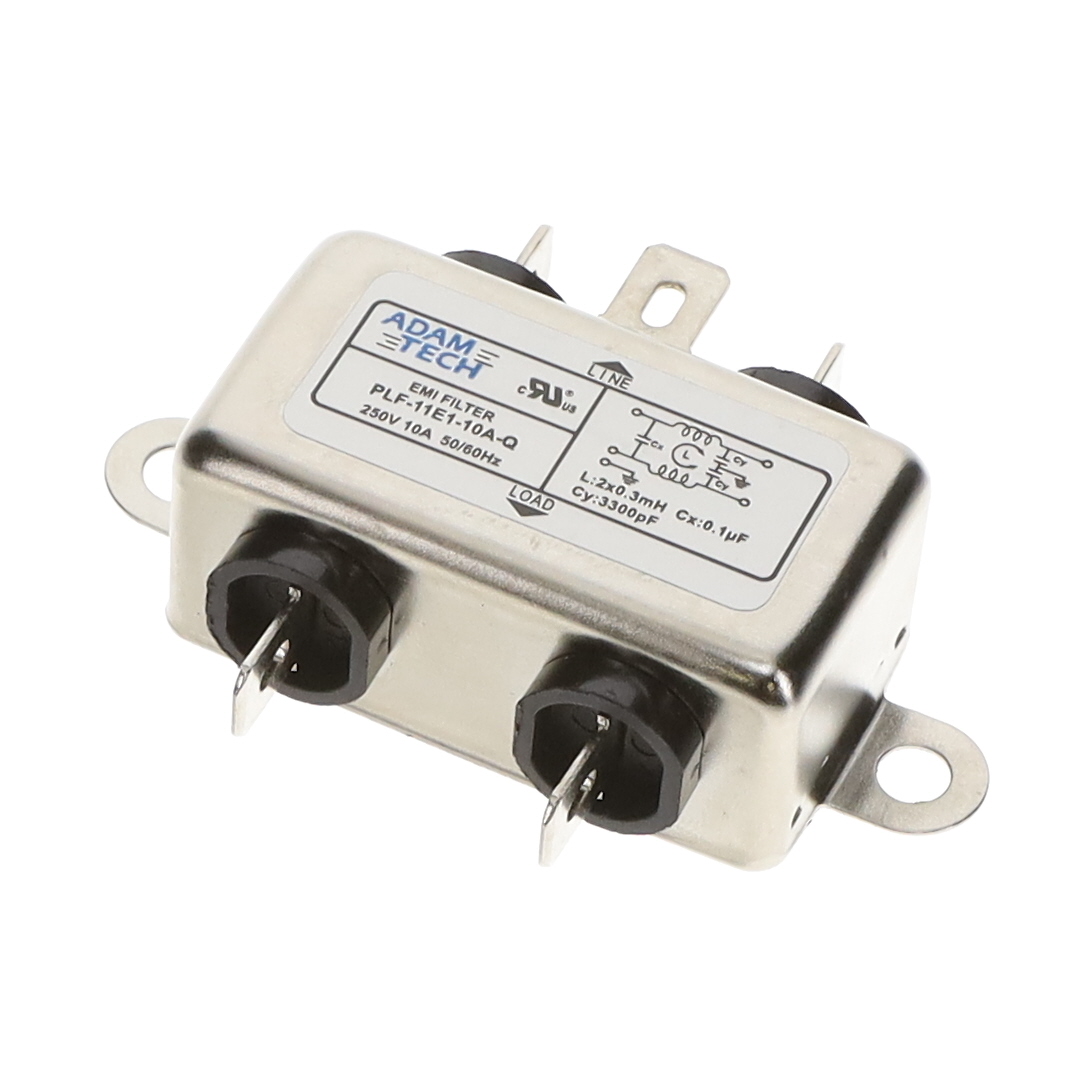

The PLF-11E1-10A-Q is a single-phase EMC/EMI line filter module manufactured by Adam Tech. It supports a current rating of 10 A and operates at voltages of 115 VAC and 250 VAC with a frequency range of 50/60 Hz. The component utilizes a single-stage filtering design and features quick connect terminals with a .250 inch [6.35mm] Faston interface. It is designed for chassis or panel mounting and includes a flange for secure installation.
Feature Summary
- Single-stage EMI/RF filtering for power line noise suppression
- Quick connect terminal interface for simplified wiring
- Flange-mounted chassis or panel installation capability
Applications
- Power supply units
- Battery chargers
- Portable electronic devices
Procurement Notes
Verify the specific suffix (Q vs W-R) to confirm terminal type, as Q denotes quick connect while other variants may use wire leads. Confirm mounting style matches the application requirements. Ensure voltage and current ratings align with system specifications. Check for RoHS compliance if required by project standards. Validate datasheet version for accurate dimensional data.
Selection Notes
Select this model for applications requiring single-phase EMI suppression in compact form factors. The quick connect feature suits automated assembly or frequent maintenance scenarios. Ensure adequate clearance for chassis mounting. Consider thermal derating if operating near maximum temperature limits. Verify compatibility with existing PCB or terminal block layouts.
Part Context
This component belongs to the PLF series of power line filters from Adam Tech. The series offers various configurations for different current and voltage requirements. The PLF-11E1-10A-Q specifically targets standard AC mains frequencies and provides basic noise attenuation for consumer and industrial electronics.
Replacement Considerations
PLF-11A1-10A-Q is a related variant within the same series. Verify terminal configuration differences before substitution. Ensure electrical ratings remain compatible with the original design requirements.
