Product Detailed Parameters
- Description：LINE FILTER 115V/250VAC 10A CHAS
- Series：PLF
- Mfr：Adam Tech
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：10:00 AM
- Frequency - Operating：50 ~ 60Hz
- Applications：-
- Approval Agency：cURus
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Inductance：300µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

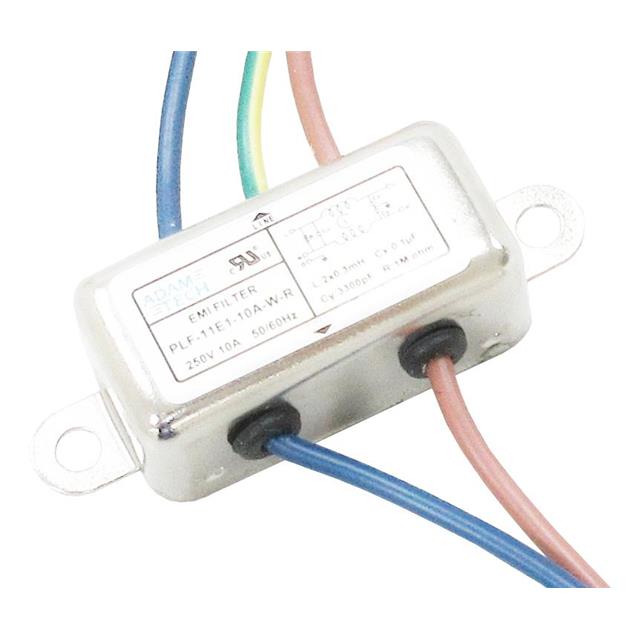

The PLF-11E1-10A-W-R is a single-phase EMI/RF line filter manufactured by Adam Tech. It features a current rating of 10 A and operates at voltage ratings of 115 VAC and 250 VAC within the 50–60 Hz frequency range. The component includes an inductance of 300 uH and utilizes wire leads for termination. Mounting is achieved via chassis or flange mounting style. The unit is designed for operation within a temperature range of -25°C to 85°C.
Feature Summary
- Provides single-stage EMI/RFI filtering for single-phase power lines
- Utilizes wire lead termination for flexible integration
- Supports chassis or flange mounting configurations
Applications
- Industrial equipment requiring electromagnetic interference suppression
- Commercial machinery needing RF noise reduction
- Power supply input stages for compliance with emission standards
Procurement Notes
Verify that the specific application requires a single-stage filter configuration with wire leads rather than PCB mount options. Confirm that the operating environment stays within the specified -25°C to 85°C temperature range. Ensure the mounting hardware accommodates the flange/chassis style. Check for cURus approval requirements if applicable to the target market regulations.
Selection Notes
Select this component when a 10 A current capacity is required for 115V or 250VAC systems. The 300 uH inductance value should be evaluated against the specific noise spectrum of the application. Consider the physical space available for chassis mounting and the length of wire leads needed for connection to the circuit board or terminal block.
Part Context
This part belongs to the Adam Tech power line filter series, designed for general-purpose EMI suppression. It serves as a passive component to attenuate high-frequency noise on AC power lines. The product is distinct from multi-stage filters or DC-only filters found in other product lines.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout and mechanical dimensions before considering any alternative components from different manufacturers.
