PLF-11E1-1A-W

Overview

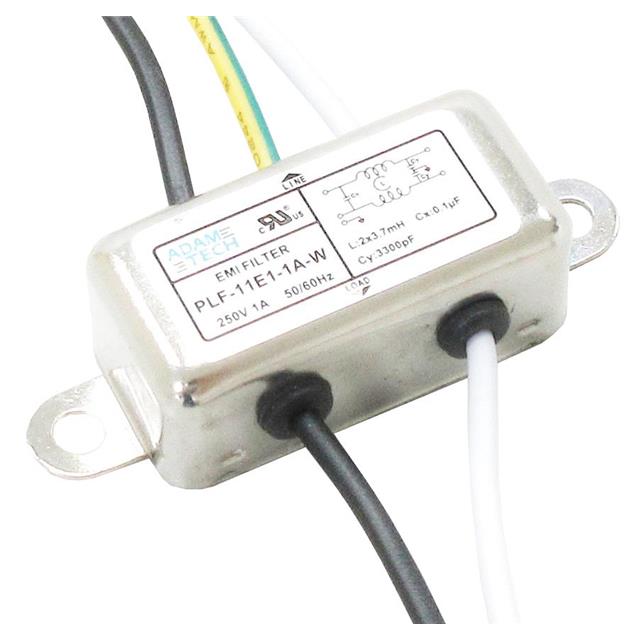

The PLF-11E1-1A-W is a single-phase EMI/RFI power line filter manufactured by Adam Tech. It is rated for 115VAC to 250VAC input voltages and supports a maximum current of 1A at 50Hz or 60Hz frequencies. The component utilizes wire leads with wiring terminals for connection and features chassis mounting. It carries cURus approval, indicating compliance with relevant safety standards for North American markets.

Feature Summary

• Provides electromagnetic interference and radio frequency interference suppression for single-phase AC power lines
• Designed for direct chassis mounting to ensure stable physical installation
• Equipped with wire leads and wiring terminals for simplified circuit integration

Applications

• Single-phase AC power supply filtering in electronic equipment
• EMI suppression in industrial control systems
• Noise reduction in communication devices operating on standard AC mains

Procurement Notes

Verify the specific voltage and current ratings against your system requirements before procurement. Confirm that the chassis mounting style and wire lead configuration match your assembly design. Ensure compatibility with local safety certification requirements, as this part holds cURus approval. Cross-reference the manufacturer datasheet for precise dimensional tolerances and terminal specifications to avoid integration errors.

Selection Notes

Select this component when single-phase EMI filtering is required for low-current applications up to 1A. Consider the chassis mounting requirement and wire lead termination method during mechanical design. Evaluate the need for cURus certification if the end product targets North American regulatory compliance. Compare alternative filters only if higher current capacity or different mounting styles are necessary.

Part Context

This component belongs to Adam Tech's series of power line filters designed for EMI/RFI suppression. These filters are engineered to meet stringent noise reduction standards while maintaining compact form factors suitable for various electronic enclosures. The series typically offers multiple current ratings and mounting options to accommodate diverse application needs across industrial and commercial sectors.

Replacement Considerations

Direct substitutes must match the 1A current rating, 115-250VAC voltage range, and single-phase configuration. Verify that any replacement maintains the same chassis mounting style and wire lead termination type. Ensure equivalent EMI attenuation performance and safety certifications such as cURus are present in the alternative component.
