Product Detailed Parameters
- Description：LINE FILTER 115V/250VAC 6A CHASS
- Series：PLF
- Mfr：Adam Tech
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：6:00 AM
- Frequency - Operating：50 ~ 60Hz
- Applications：-
- Approval Agency：cURus
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Inductance：800µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

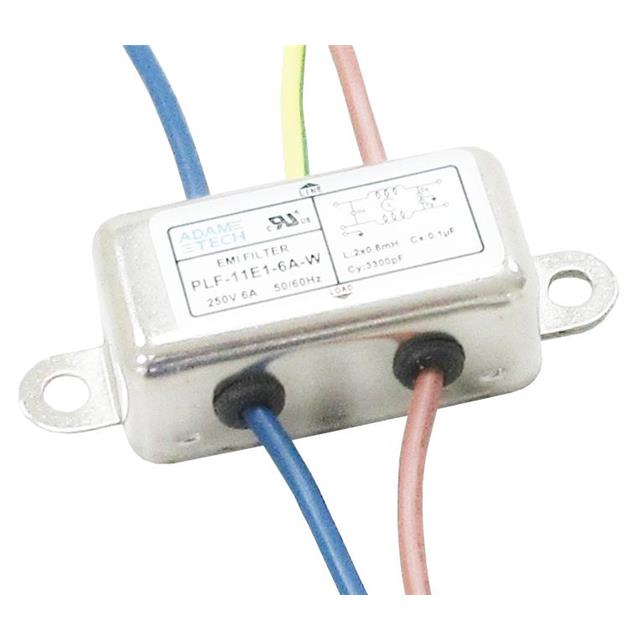

The PLF-11E1-6A-W is a single-phase EMI/RF line filter manufactured by Adam Tech. It is designed to prevent electromagnetic interference signals from reaching the input power line or connected equipment. The component supports an operating voltage of 115VAC and 250VAC with a current rating of 6A at 50-60Hz. It features a single-stage configuration and utilizes wire leads for connection. The unit is intended for chassis mounting, providing a compact solution for noise suppression in AC power applications.
Feature Summary
- Prevents electromagnetic interference signals from reaching the input power line or the equipment
- Single-stage configuration for effective noise suppression
- Designed for chassis mounting with integrated wire leads
Applications
- Chassis-mounted power supply filtering
- Electromagnetic interference suppression in AC power inputs
- Noise reduction for electronic equipment requiring 115VAC or 250VAC operation
Procurement Notes
Verify the specific voltage and current ratings against the application requirements before procurement. Confirm that the chassis mounting style and wire lead configuration match the system design constraints. Ensure compatibility with the target frequency range of 50-60Hz. Cross-reference the manufacturer part number PLF-11E1-6A-W with official Adam Tech documentation to confirm active status and technical specifications.
Selection Notes
Select this component when a single-stage EMI filter is required for chassis-mounted installations. It is suitable for applications operating at 115VAC or 250VAC with a maximum current of 6A. Consider the physical dimensions and mounting type to ensure integration into the enclosure. Verify that the wire lead termination method aligns with the internal wiring scheme of the device.
Part Context
This component belongs to the PLF series of line filters produced by Adam Tech. The series focuses on providing reliable EMI/RF suppression for AC power lines. The PLF-11E1-6A-W represents a specific variant within this family, characterized by its 6A rating and dual voltage support. It is part of Adam Tech's broader portfolio of connectors and passive components used in industrial and commercial electronics.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided data. Consult Adam Tech directly for equivalent or alternative models if this specific part is unavailable.
