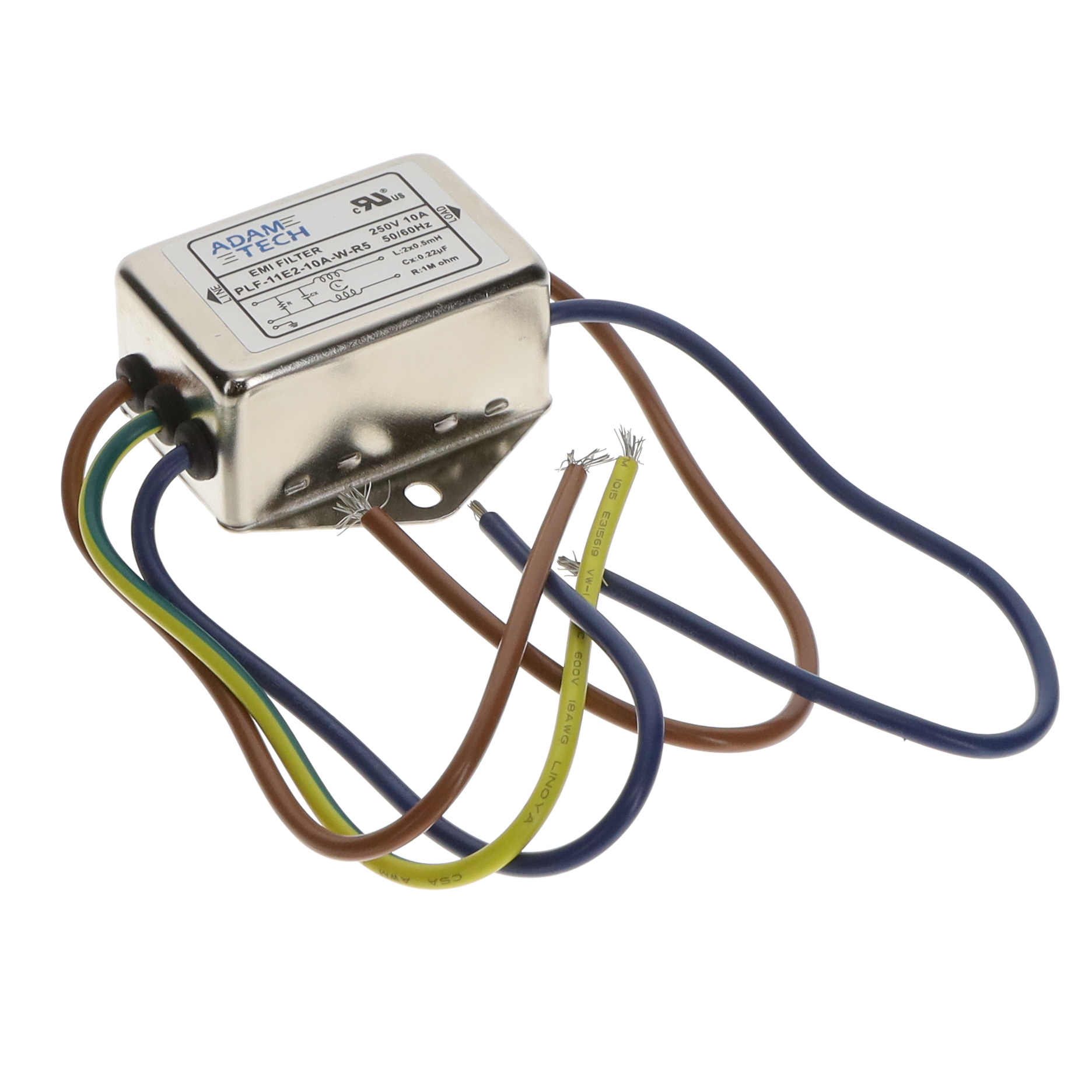

PLF-11E2-10A-W-R5

$7.19

Description：LINE FLTR 115/250VAC 10A PANEL
Series：PLF
Mfr：Adam Tech
Package：Bulk

SKU:383bf447d422 Category: Power Line Filter Modules Brand: Adam Tech

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FLTR 115/250VAC 10A PANEL
Series：PLF
Mfr：Adam Tech
Package：Bulk
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：115V, 250V
Current：10:00 AM
Frequency - Operating：50/60Hz
Applications：Medical
Approval Agency：cURus
Operating Temperature：-25°C ~ 85°C
Mounting Type：Panel Mount
Termination Style：Wire Leads
Inductance：500µH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

PLF-11E2-10A-W-R5

Overview

The PLF-11E2-10A-W-R5 is a single-phase EMI/RFI power line filter manufactured by Adam Tech. It supports rated AC voltages of 115V and 250V with a current rating of 10A. Designed for chassis mounting, the unit utilizes wire leads for termination. The component operates at frequencies of 50Hz and 60Hz and holds cURus approval.

Feature Summary

Medical grade construction suitable for sensitive equipment
Single-phase EMI/RFI filtering capability
Chassis mount design with wire lead termination

Applications

Medical devices
Industrial machinery
Communication systems

Procurement Notes

Verify the specific suffix R5 against the manufacturer datasheet to confirm wire lead configuration and medical grade compliance. Ensure chassis mounting provisions align with the enclosure design. Confirm voltage ratings match the target application circuit requirements before procurement.

Selection Notes

Select this component when medical grade certification is required for single-phase power filtering. The 10A rating suits moderate power applications. Wire leads offer flexibility in internal wiring compared to screw terminals. Verify space constraints for chassis mounting dimensions.

Part Context

This part belongs to the PLF series of power line filters from Adam Tech. The series includes variants with different current ratings and termination styles. The PLF-11E2-10A-W-R5 specifically denotes the 10A medical grade variant with wire leads.

Replacement Considerations

PLF-11A1-10A-Q is a related inlet socket variant but differs in mounting style. Direct substitutes require matching 10A rating, 115/250VAC input, and medical grade status. Verify pinout and physical dimensions for compatibility.
