Product Detailed Parameters
- Description：LINE FILTER 115V/250VAC 6A CHASS
- Series：PLF
- Mfr：Adam Tech
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：6:00 AM
- Frequency - Operating：50 ~ 60Hz
- Applications：-
- Approval Agency：cURus
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：1.8mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

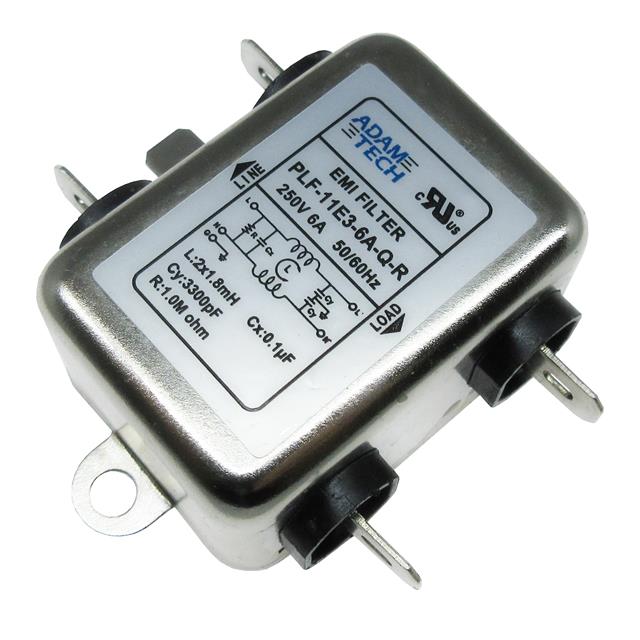

The PLF-11E3-6A-Q-R is a single-phase EMI/RF line filter manufactured by Adam Tech. It supports voltage ratings of 115 VAC and 250 VAC with a current rating of 6 A. Designed for chassis mounting, it utilizes screw clamp termination. The unit operates at frequencies of 50 Hz and 60 Hz and features an inductance of 700 uH. It holds CURUS compliance and functions within a maximum operating temperature of +85 C.
Feature Summary
- Provides electromagnetic interference and radio frequency suppression for single-phase power lines
- Utilizes a small outline form factor suitable for compact chassis installations
- Employs screw clamp termination for secure electrical connections
Applications
- Industrial equipment requiring EMI filtering
- Communication systems needing RF noise reduction
- Medical devices adhering to strict emission standards
Procurement Notes
Verify the specific suffix Q-R against the manufacturer datasheet to confirm terminal type and packaging configuration. Ensure the chassis mount footprint matches the design enclosure. Confirm CURUS certification requirements are met for the target market. Check RoHS compliance status for environmental regulations. Validate voltage and current ratings against the actual load conditions before integration.
Selection Notes
Select this component when a single-phase filter with 6 A capacity is required for chassis mounting. Compare inductance values against other PLF series variants if higher attenuation is needed. Consider the physical dimensions of the small outline package for space-constrained designs. Verify that the screw clamp termination method aligns with available wiring infrastructure.
Part Context
This part belongs to the PLF series of power line filters from Adam Tech. The series offers various current ratings and mounting options. The PLF-11E3-6A-Q-R specifically targets applications requiring moderate current handling with standard chassis installation methods. It complements the manufacturer's broader range of EMC solutions.
Replacement Considerations
Consult the official Adam Tech cross-reference list for verified substitutes. Ensure replacement parts match the 6 A rating and 700 uH inductance. Verify identical chassis mount dimensions and screw clamp termination types.
