Product Detailed Parameters
- Description：LINE FILTER 115V/250VAC 10A CHAS
- Series：PLF
- Mfr：Adam Tech
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：10:00 AM
- Frequency - Operating：50 ~ 60Hz
- Applications：-
- Approval Agency：cURus
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：1.2mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

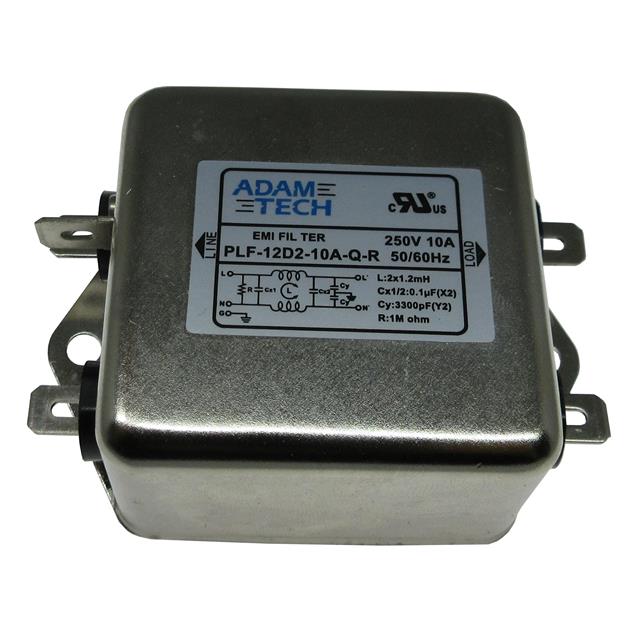

The PLF-12D2-10A-Q-R is a single-phase EMI/RFI line filter manufactured by Adam Tech. It features a current rating of 10 A and voltage ratings of 115 VAC and 250 VAC, operating at frequencies of 50 Hz and 60 Hz. The unit provides an inductance of 1.2 mH and utilizes a chassis mount style with quick connect termination. It is designed for industrial applications requiring electromagnetic interference suppression.
Feature Summary
- Provides single-stage EMI/RFI filtering for power lines
- Supports dual voltage ratings for global compatibility
- Utilizes quick connect terminals for simplified assembly
Applications
- Industrial equipment power input stages
- Medical device power supplies
- Commercial audio/video systems
Procurement Notes
Verify the specific termination type against the schematic, as this model uses quick connect pins rather than screw terminals. Confirm that the 10 A current rating meets the peak load requirements of the target circuit. Ensure the chassis mounting dimensions align with the enclosure design before finalizing the bill of materials.
Selection Notes
Select this component when a compact, single-phase filter is required for 115 VAC or 250 VAC systems. The quick connect interface suits automated assembly processes. Compare inductance values with similar models like the PLF-12E4 series if higher attenuation is needed. Verify that the physical footprint fits within the available space on the chassis panel.
Part Context
This component belongs to the PLF series of power line filters from Adam Tech. These modules are engineered for chassis mounting to suppress conducted noise on AC power lines. The series offers various current ratings and termination styles to accommodate different system integration needs.
Replacement Considerations
The PLF-12E4-20A-S-R is a related model but differs in current rating (20 A) and termination style (screw clamp). Substitution requires verifying mechanical fit and electrical capacity. No direct pin-for-pin equivalent is confirmed in public documentation.
