Product Detailed Parameters
- Description：LINE FILTER 115V/250VAC 3A CHASS
- Series：PLF
- Mfr：Adam Tech
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：3:00 AM
- Frequency - Operating：50 ~ 60Hz
- Applications：-
- Approval Agency：cURus
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：1.5mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

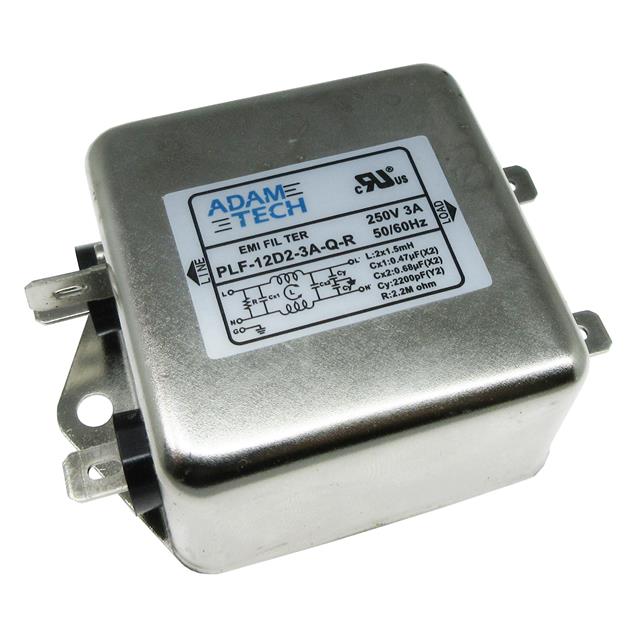

The PLF-12D2-3A-Q-R is a single-phase EMI/RF line filter module manufactured by Adam Tech. It supports voltage ratings of 115 VAC and 250 VAC with a current rating of 3 A. The component operates at frequencies of 50 Hz to 60 Hz and features chassis mounting with quick connect terminals. It includes cURus approval and functions within an operating temperature range of -25°C to +85°C.
Feature Summary
- Provides electromagnetic interference and radio frequency interference suppression for single-phase power lines.
- Utilizes quick connect terminal interfaces for simplified circuit integration.
- Designed for direct chassis mounting to ensure secure physical installation.
Applications
- Single-phase AC power input stages in electronic equipment
- Chassis-mounted power supply filtering applications
- Compliance-oriented designs requiring EMI/RFI noise reduction
Procurement Notes
Verify the specific suffix Q-R against official Adam Tech documentation to confirm terminal type and package variations. Ensure the selected variant matches the required 3 A current rating and 115/250 VAC voltage specifications for your application. Confirm cURus certification status if regulatory compliance is mandatory for the final product deployment.
Selection Notes
Select this component when a compact, single-stage EMI filter is required for 3 A single-phase circuits. The chassis mount style suits enclosed equipment designs. Verify that the quick connect terminal pitch aligns with the PCB or wire harness layout. Ensure the operating temperature range covers the environmental conditions of the intended installation site.
Part Context
This part belongs to the PLF series of power line filters from Adam Tech. The series offers various current ratings and outline sizes. The PLF-12D2-3A-Q-R represents the medium outline variant designed for moderate current applications. It complements other models in the lineup offering different mounting styles and electrical ratings.
Replacement Considerations
Consult Adam Tech datasheets for direct cross-references within the PLF series. Verify pinout compatibility and thermal characteristics before substituting with generic EMI filters. Ensure any alternative meets the same cURus safety approvals and voltage/current ratings.
