Product Detailed Parameters
- Description：LINE FILTER 115V/250VAC 20A CHAS
- Series：PLF
- Mfr：Adam Tech
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：20 A
- Frequency - Operating：50 ~ 60Hz
- Applications：-
- Approval Agency：cURus
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：900µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

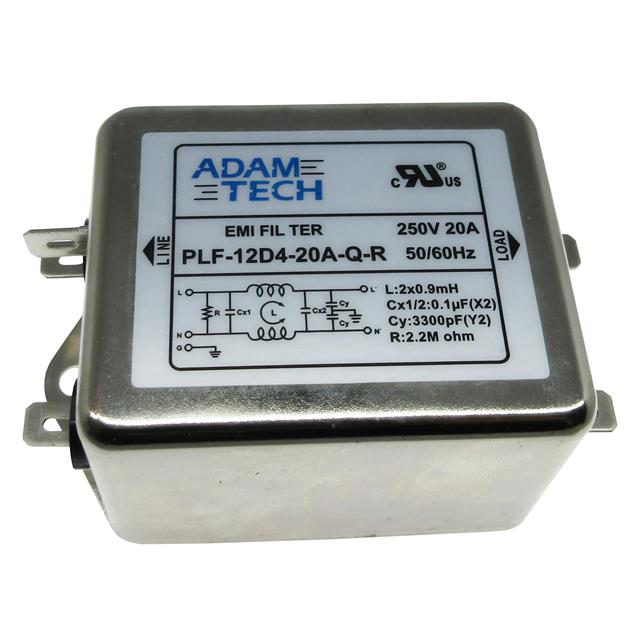

The PLF-12D4-20A-Q-R is a single-phase EMI/RFI line filter module manufactured by Adam Tech. It is designed for power line applications with a rated current of 20 A and operates at frequencies between 50 Hz and 60 Hz. The component supports voltage ratings of 115 VAC and 250 VAC. It features a medium outline chassis mount configuration and utilizes quick connect terminals for circuit integration. This filter provides electromagnetic interference suppression for single-stage filtering requirements in AC power systems.
Feature Summary
- Provides single-stage EMI and RFI suppression for AC power lines
- Features chassis mount construction for secure mechanical installation
- Utilizes quick connect terminal interfaces for simplified wiring
Applications
- Single-phase AC power line filtering
- Electromagnetic interference suppression in industrial equipment
- Radio frequency interference mitigation in electronic assemblies
Procurement Notes
Verify the specific part number PLF-12D4-20A-Q-R against official Adam Tech documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with chassis mounting requirements and quick connect terminal specifications. Confirm RoHS compliance status through manufacturer datasheets prior to procurement. Validate operating frequency range and voltage ratings for target application safety.
Selection Notes
Select this component for applications requiring single-phase EMI filtering with a 20 A current capacity. Ensure the system operates within the 50-60 Hz frequency range and accommodates 115 VAC or 250 VAC voltages. Verify that chassis mounting space and quick connect terminal availability align with the design constraints. Consider the medium outline form factor for enclosure integration.
Part Context
This component belongs to the PLF series of power line filter modules from Adam Tech. The series offers various current ratings and configurations for AC power line filtering. The PLF-12D4-20A-Q-R variant specifically addresses higher current requirements compared to lower-rated models in the same family, providing standardized EMI suppression capabilities.
Replacement Considerations
Consult Adam Tech official documentation for verified substitute part numbers. Cross-reference electrical parameters including current rating, voltage, and frequency before substitution.
