Product Detailed Parameters
- Description：LINE FILTER 115V/250VAC 10A CHAS
- Series：PLF
- Mfr：Adam Tech
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：10:00 AM
- Frequency - Operating：50 ~ 60Hz
- Applications：-
- Approval Agency：cURus
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：1.2mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

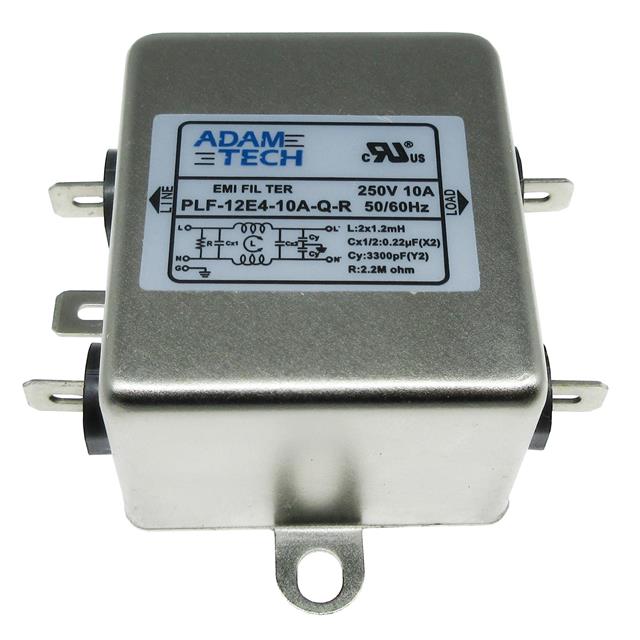

The Adam Tech PLF-12E4-10A-Q-R is a single-phase EMI/RF line filter designed for AC power line applications. It features a current rating of 10 A and voltage ratings of 115 VAC or 250 VAC, operating at frequencies of 50 Hz to 60 Hz. The unit utilizes a small outline chassis mount style with quick connect terminals for circuit board integration. Key electrical specifications include an inductance of 700 uH and a maximum operating temperature of +85 C. The component holds CURUS compliance certification.
Feature Summary
- Provides electromagnetic interference (EMI) and radio frequency interference (RFI) suppression for single-phase AC power lines
- Utilizes a compact small outline chassis mount design for efficient space utilization
- Equipped with quick connect terminals for simplified circuit board integration
Applications
- Single-phase AC power line filtering
- Chassis mounted electronic equipment requiring EMI suppression
- Industrial control systems operating at 50/60 Hz
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct terminal type and mounting configuration. Confirm that the 10 A current rating and 115/250 VAC voltage ratings align with your system requirements. Check for updated compliance certifications such as CURUS before finalizing procurement decisions.
Selection Notes
Select this component when a single-stage EMI filter is required for single-phase AC inputs. Ensure the application supports chassis mounting and utilizes quick connect interfaces. Verify that the 10 A continuous current capacity meets the load demands without exceeding thermal limits at the specified maximum operating temperature.
Part Context
This part belongs to the Adam Tech PLF series of power line filters. The series offers various current ratings and mounting options for different EMC requirements. The PLF-12E4-10A-Q-R specifically addresses needs for moderate current applications with standard quick-connect termination styles.
Replacement Considerations
Consult official substitution guides for equivalent single-phase EMI filters with matching 10 A ratings and quick connect terminals. Verify mechanical dimensions and pinout compatibility before replacing existing units.
