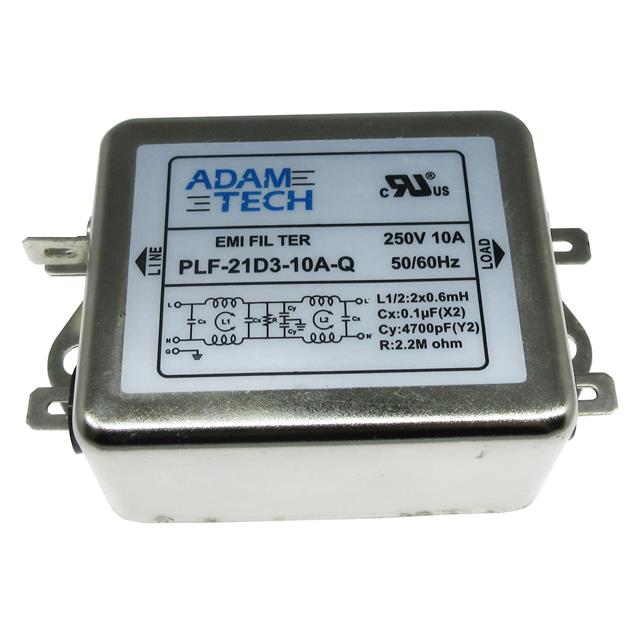

PLF-21D3-10A-Q

$17.84

Description：LINE FILTER 115V/250VAC 10A CHAS
Series：PLF
Mfr：Adam Tech
Package：Tray

SKU:dbc4c4e398f8 Category: Power Line Filter Modules Brand: Adam Tech

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 115V/250VAC 10A CHAS
Series：PLF
Mfr：Adam Tech
Package：Tray
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：115V, 250V
Current：10:00 AM
Frequency - Operating：50 ~ 60Hz
Applications：-
Approval Agency：cURus
Operating Temperature：-25°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：600µH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

PLF-21D3-10A-Q

Overview

The Adam Tech PLF-21D3-10A-Q is a dual-stage EMI/RF power line filter designed for chassis mounting. It supports a current rating of 10 A and operates at voltage ratings of 115 VAC or 250 VAC. The component functions within a frequency range of 50 Hz to 60 Hz. Termination is achieved via quick connect terminals, facilitating integration into power supply circuits requiring electromagnetic interference suppression.

Feature Summary

Dual-stage filtering architecture for enhanced noise attenuation
Chassis mount design for secure mechanical installation
Quick connect termination style for simplified wiring

Applications

Industrial equipment power input stages
Commercial machinery EMC compliance
Power supply unit output filtering

Procurement Notes

Verify the specific suffix 'Q' indicates quick connect terminals against official datasheets. Confirm chassis mount dimensions and terminal spacing match enclosure requirements. Ensure operating voltage and current ratings align with system specifications before procurement.

Selection Notes

Select this model when dual-stage attenuation is required for strict EMI standards. The chassis mount style suits applications needing robust physical stability. Verify that quick connect terminals are compatible with existing harness connectors and wire gauges.

Part Context

This component belongs to the PLF series of power line filters from Adam Tech. These modules are engineered for general-purpose EMI/RF suppression in AC power lines. The series offers various configurations to meet different mounting and electrical requirements across industrial and commercial sectors.

Replacement Considerations

Cross-reference with other Adam Tech PLF series models featuring dual-stage filtering and quick connect terminals. Verify identical current, voltage, and mounting specifications before substitution.
