PLF-22D1-3A-W-5

Overview

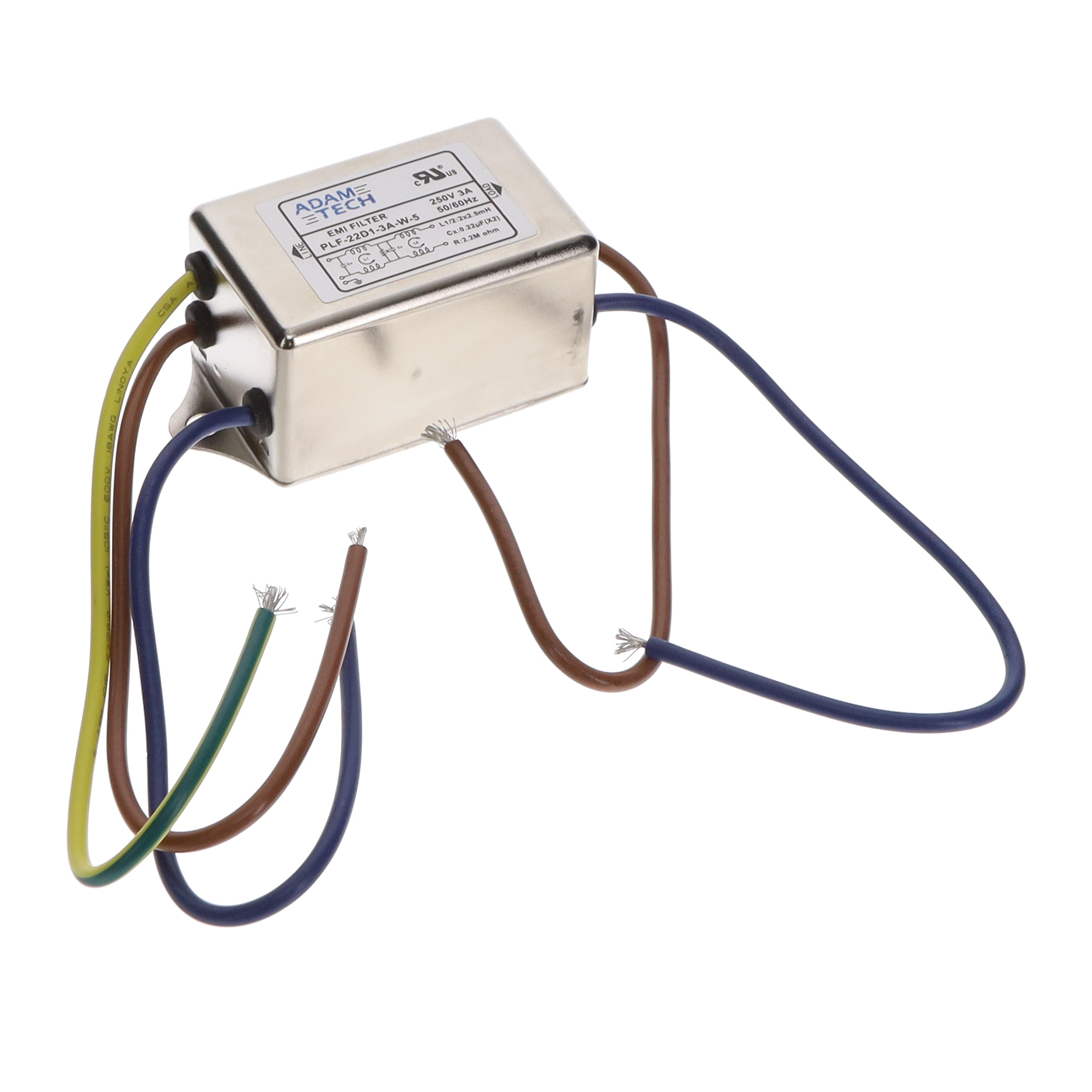

The PLF-22D1-3A-W-5 is a single-phase EMI/RFI power line filter manufactured by Adam Tech. It features a dual-stage filtering design intended for chassis mounting with wire leads. The component supports a rated current of 3 A and operates at voltage ratings of 115 VAC and 250 VAC across frequencies of 50 Hz and 60 Hz. It has a small outline form factor with a width of 33 mm. The unit is certified as medical grade and complies with CURUS standards.

Feature Summary

• Dual-stage EMI/RFI filtering architecture
• Medical grade certification compliance
• Chassis mount installation with wire leads
• CURUS certified safety compliance

Applications

• Medical equipment power supplies
• Industrial control systems
• Electronic instrumentation

Procurement Notes

Verify the specific suffix -5 against the manufacturer's latest datasheet to confirm exact lead length and termination specifications. Ensure the medical grade designation is required for your application's regulatory compliance. Confirm chassis mounting dimensions and wire lead lengths match your assembly constraints before ordering.

Selection Notes

Select this component when dual-stage attenuation is required within a compact chassis-mounted footprint. The 3 A rating suits moderate power applications. Verify that the wire lead termination style fits the internal wiring layout. Consider the medical grade certification if the end product requires specific safety standards.

Part Context

This part belongs to the PLF series of power line filters from Adam Tech. It shares the general chassis-mount form factor with other models in the family but differs in current rating, stage count, and termination type. The -5 suffix typically denotes specific wire lead variations within the product line.

Replacement Considerations

Check PLF-22D1-3A-W for similar specifications without the -5 suffix variation. Compare PLF-22D1-6A-W for higher current capacity options. Verify pinout and mounting hole compatibility with existing designs.
