Product Detailed Parameters
- Description：LINE FILTER 115V/250VAC 20A CHAS
- Series：PLF
- Mfr：Adam Tech
- Package：Tray
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：115V, 250V
- Current：20 A
- Frequency - Operating：50 ~ 60Hz
- Applications：-
- Approval Agency：cURus
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：L1 - 4mH, L2 - 2.5mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

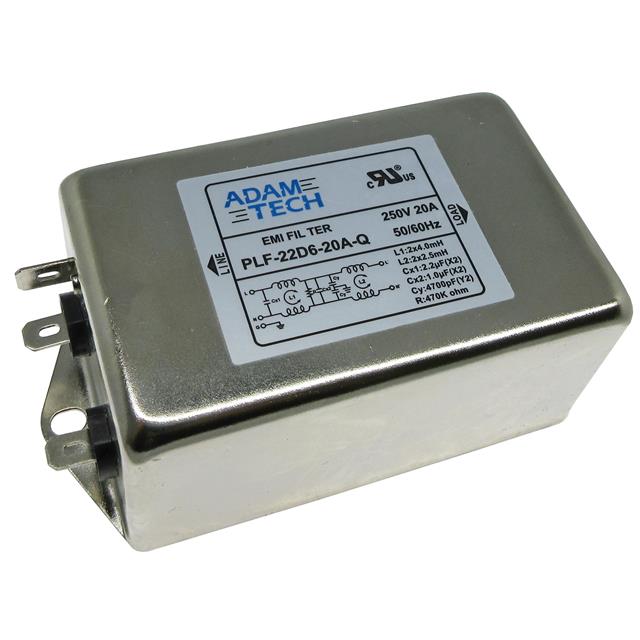

The Adam Tech PLF-22D6-20A-Q is a single-phase EMI/RFI power line filter module designed for chassis mounting. It features a two-stage configuration with quick-connect terminals, rated for 20 A current and 115 VAC or 250 VAC voltage at 50 Hz or 60 Hz operating frequencies. The unit holds cURus certification and utilizes a medium outline design to provide effective noise suppression in AC power applications.
Feature Summary
- Two-stage filtering architecture for enhanced noise attenuation
- Quick-connect terminal interface for simplified circuit integration
- Chassis mount construction for secure mechanical installation
Applications
- Power supply units requiring EMI suppression
- Battery charger systems
- Portable electronic devices
- Energy-efficient equipment
Procurement Notes
Verify the specific datasheet version for the PLF-22D6-20A-Q to confirm exact dimensional tolerances and terminal specifications before finalizing designs. Ensure that the quick-connect terminals match the mating connector requirements of the target assembly. Confirm that the chassis mounting holes align with the enclosure layout to prevent mechanical interference during installation.
Selection Notes
Select this component when a single-phase, two-stage EMI filter is required for 20 A applications. The medium outline size offers a balance between filtration performance and space constraints. Verify that the operating environment does not exceed the specified voltage ratings of 115 VAC or 250 VAC. Ensure compatibility with 50 Hz or 60 Hz line frequencies for proper filter operation.
Part Context
This part belongs to the Adam Tech PLF series of power line filters. These modules are engineered for general-purpose EMI/RFI suppression in AC power lines. The series includes various configurations to meet different current and voltage requirements while maintaining compact form factors suitable for industrial and commercial electronics.
Replacement Considerations
Publicly confirmed substitute part numbers for the PLF-22D6-20A-Q were not identified in available documentation. Cross-referencing requires matching single-phase, two-stage, 20 A, 115/250 VAC specifications with quick-connect terminals and chassis mount capabilities.
