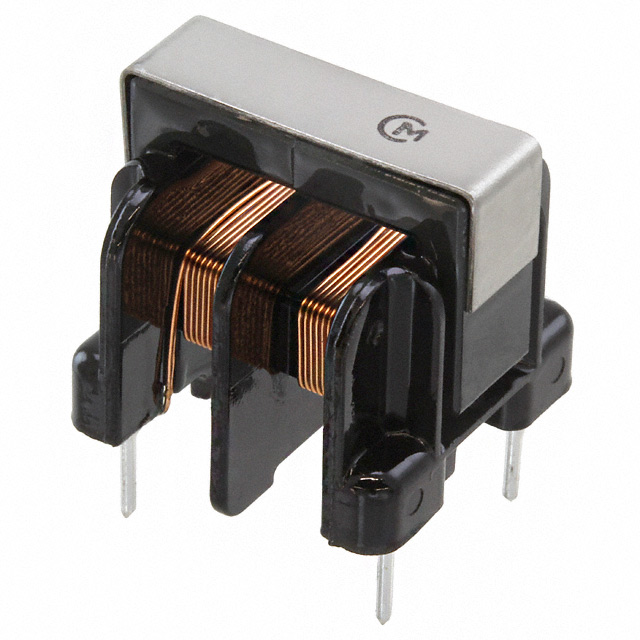

PLH10AN2211R5P2B

Description：CMC 1.5A 2LN TH
Series：PLH10
Mfr：Murata Electronics
Package：Bulk

SKU:57bf222e8851 Category: Common Mode Chokes Brand: Murata Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PLH10AN2211R5P2B is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Murata Electronics. Its product description is CMC 1.5A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for PLH10AN2211R5P2B

Description：CMC 1.5A 2LN TH
Series：PLH10
Mfr：Murata Electronics
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1.5A
DC Resistance (DCR) (Max)：-
Voltage Rating - DC：300V
Voltage Rating - AC：-
Operating Temperature：-25°C ~ 60°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.709" L x 0.630" W (18.00mm x 16.00mm)
Height (Max)：0.689" (17.50mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：-
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for PLH10AN2211R5P2B

PLH10AN2211R5P2B

Common Mode Chokes Overview

PLH10AN2211R5P2B is a through-hole common mode choke manufactured by Murata Electronics. It features two lines and supports a maximum current of 1.5A with an inductance of 220uH. The component is rated for 300V and utilizes a leaded termination style for printed circuit board mounting.

Common Mode Chokes Feature Summary

Provides electromagnetic interference noise suppression
Designed for common mode signal filtering

Common Mode Chokes Applications

Electronic equipment EMI suppression
Electromagnetic compatibility circuits

Common Mode Chokes Procurement Notes

Verify the specific part number PLH10AN2211R5P2B against official Murata documentation to confirm technical specifications. Ensure the component meets required voltage and current ratings for the intended application before procurement.

Common Mode Chokes Selection Notes

Select this component based on its 1.5A current rating and 220uH inductance requirements. Confirm that the through-hole package and 300V rating align with the design constraints and environmental conditions of the target system.

Common Mode Chokes Part Context

This component belongs to the common mode chokes category produced by Murata Electronics. It serves as a passive filter element designed to mitigate conducted noise in electronic circuits, supporting overall system reliability and compliance with electromagnetic standards.

Common Mode Chokes Replacement Considerations

Consult official Murata resources for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' components without validating electrical parameters and physical dimensions.
