PLH10AN7003R6P2B

Common Mode Chokes Overview

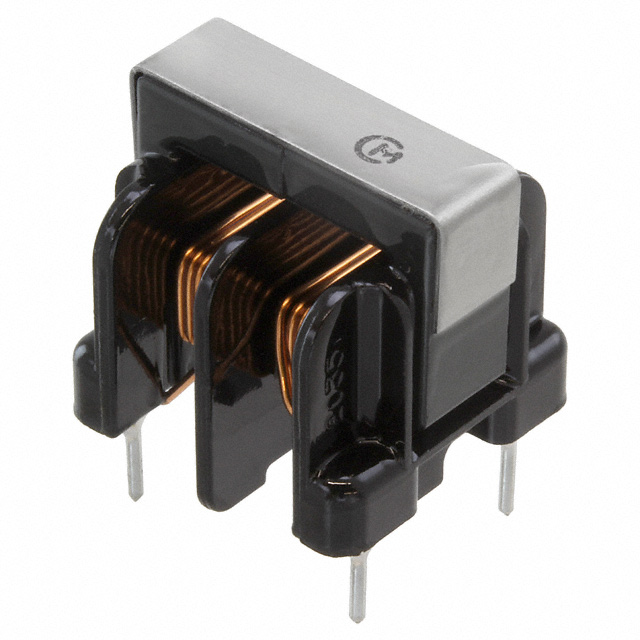

The PLH10AN7003R6P2B is a through-hole common mode choke manufactured by Murata Electronics. It belongs to the PLH10 series and is designed for power line filtering applications. The component features two lines of operation with an inductance of 70 µH and a maximum current rating of 3.6 A. Its DC resistance is specified at a maximum of 30 mΩ, and it supports a DC voltage rating of 300 V. The physical dimensions are 18.00 mm in length and 16.00 mm in width. The operating temperature range extends from -25°C to 60°C.

Common Mode Chokes Feature Summary

• Provides effective noise suppression for power lines through common mode filtering capabilities.
• Designed for direct through-hole mounting to facilitate integration into circuit boards.
• Constructed to handle high current loads while maintaining low DC resistance.

Common Mode Chokes Applications

• Power line filtering in electronic equipment
• Noise suppression in AC/DC converter circuits
• EMI reduction in industrial control systems

Common Mode Chokes Procurement Notes

Verify part status as this specific model may be obsolete or discontinued. Confirm availability through authorized distributors or secondary markets if new production has ceased. Ensure compatibility with existing board layouts regarding through-hole spacing and height constraints before procurement.

Common Mode Chokes Selection Notes

Select this component when a 70 µH inductance and 3.6 A current rating are required for two-line power filtering. Consider the 300 V DC rating and -25°C to 60°C operating range against environmental conditions. Evaluate the through-hole package size against available PCB real estate.

Common Mode Chokes Part Context

This component is part of Murata's PLH10 series of common mode chokes. These devices are engineered for general-purpose EMI suppression in power supply lines. The series offers various inductance and current combinations to suit different power handling requirements in consumer and industrial electronics.

Common Mode Chokes Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. As the part status is listed as obsolete, alternative components must be selected based on matching electrical specifications such as inductance, current rating, and package type.
