PLH10AS1612R1P2B

Common Mode Chokes Overview

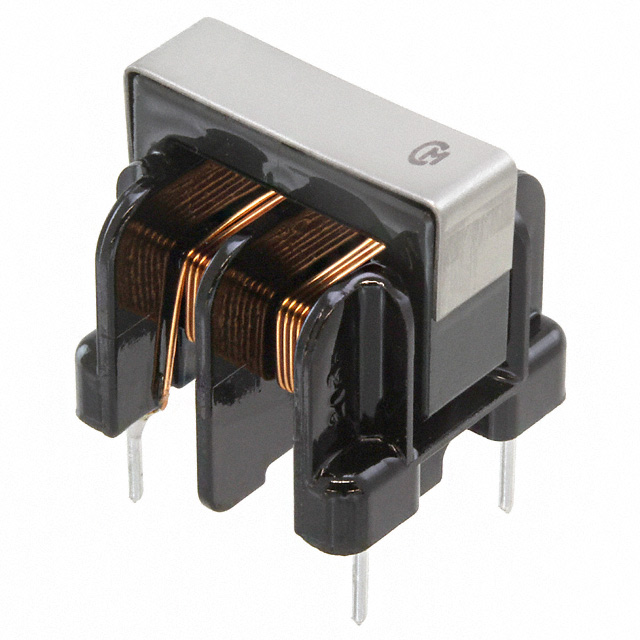

The PLH10AS1612R1P2B is a through-hole common mode choke manufactured by Murata Electronics. It features an inductance of 160uH and supports a maximum DC current of 2.1A. The component has a rated voltage of 300V DC and a maximum DC resistance of 80 milliohms. Operating temperature range is specified from -25°C to 60°C. Physical dimensions are 0.709 inches in length and 0.630 inches in width.

Common Mode Chokes Feature Summary

• Provides common mode noise filtering for differential signal lines
• Designed for through-hole mounting on printed circuit boards
• Constructed with high-performance resin materials for insulation support

Common Mode Chokes Applications

• Data center power distribution networks
• Industrial equipment signal conditioning
• Consumer appliance control circuits

Common Mode Chokes Procurement Notes

Verify the specific suffix P2B against official Murata documentation to confirm exact packaging or tape-and-reel specifications. Ensure the 300V DC rating aligns with system requirements. Confirm thermal management capabilities within the -25°C to 60°C operating range for the intended application environment.

Common Mode Chokes Selection Notes

Select this component when through-hole mounting is required for robust mechanical stability. The 160uH inductance value suits moderate frequency noise suppression. Verify that the 2.1A current handling capacity meets the load requirements without exceeding the 80 milliohm DC resistance limit for acceptable power loss.

Common Mode Chokes Part Context

Murata Electronics utilizes multi-layer lamination core technology and unique high-function resin materials for this series. These components serve as passive elements providing circuit connectivity, insulation support, and chip承载 (support) while maintaining low weight and thin profile characteristics suitable for dense wiring layouts.

Common Mode Chokes Replacement Considerations

Consult official Murata substitution guides for verified equivalents. Generic cross-references may not match the specific 160uH inductance or 2.1A current rating. Ensure any substitute maintains the through-hole package form factor and 300V DC voltage rating.
