PLH10AS2211R5P2B

Common Mode Chokes Overview

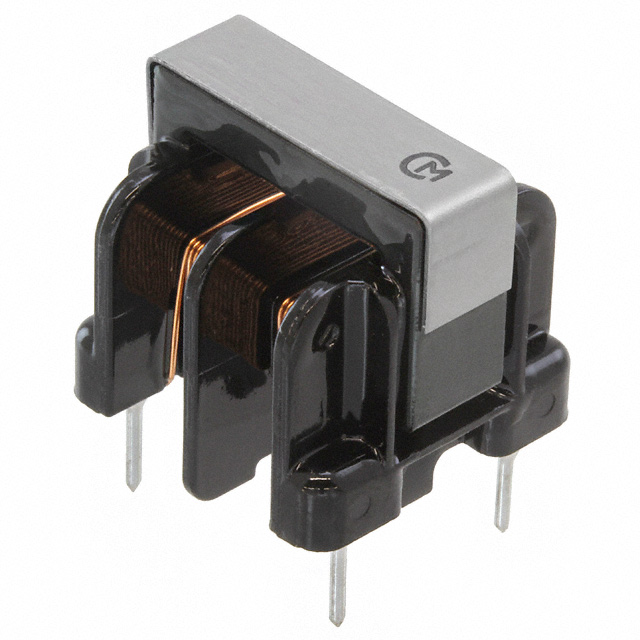

The PLH10AS2211R5P2B is a through-hole common mode choke manufactured by Murata Electronics. It features a dual-line configuration designed for power line noise suppression. The component has a rated DC voltage of 300V and supports a maximum current of 1.5A. Its physical dimensions are 18.00mm in length, 16.00mm in width, and a maximum height of 17.50mm. The operating temperature range extends from -25°C to 60°C.

Common Mode Chokes Feature Summary

• Dual-line common mode noise suppression capability
• Through-hole mounting style for robust mechanical attachment
• Rated for 300V DC applications

Common Mode Chokes Applications

• Power line EMI filtering
• Electromagnetic interference suppression in electronic circuits

Common Mode Chokes Procurement Notes

Verify the part status carefully as multiple sources indicate this model is discontinued or end-of-life. Confirm availability with authorized distributors before finalizing procurement plans. Ensure the replacement strategy accounts for the obsolescence status to prevent supply chain disruptions during production phases.

Common Mode Chokes Selection Notes

Select this component only if the specific 1.5A current rating and 300V DC voltage meet the circuit requirements. The through-hole package necessitates PCB layouts compatible with its 18.00mm x 16.00mm footprint. Verify that the -25°C to 60°C operating temperature range aligns with the environmental conditions of the target application.

Common Mode Chokes Part Context

This component belongs to the common mode choke category within Murata's passive components portfolio. It is specifically engineered for noise suppression tasks where dual-line filtering is required. The product serves as a solution for electromagnetic compatibility challenges in power supply lines.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Due to the discontinued status, engineers must identify equivalent components based on matching electrical parameters and physical dimensions.
