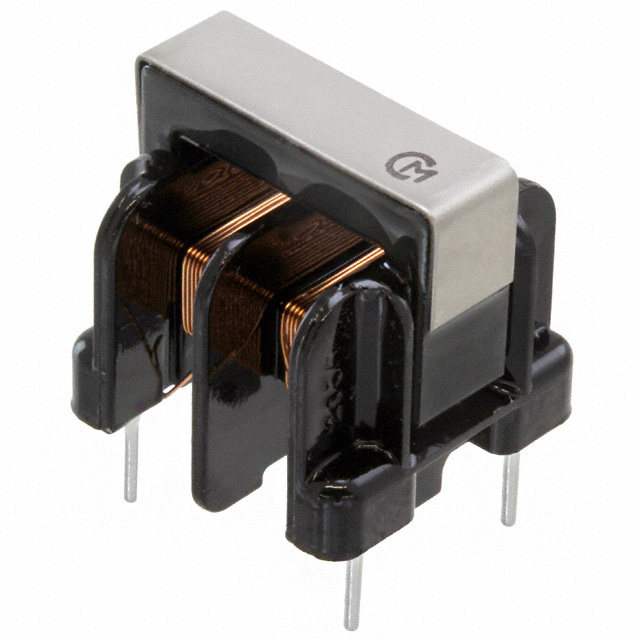

PLH10AS3711R0P2B is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Murata Electronics. Its product description is CMC 1A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for PLH10AS3711R0P2B
- Description：CMC 1A 2LN TH
- Series：PLH10
- Mfr：Murata Electronics
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：1A
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：300V
- Voltage Rating - AC：-
- Operating Temperature：-25°C ~ 60°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.709" L x 0.630" W (18.00mm x 16.00mm)
- Height (Max)：0.689" (17.50mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：-
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for PLH10AS3711R0P2B
Common Mode Chokes Overview
The PLH10AS3711R0P2B is a two-line common mode choke manufactured by Murata Electronics, designed for power line filtering applications. It features a through-hole mounting style and supports a maximum DC current of 1.0 A. The component provides an inductance of 710 µH and operates with a voltage rating of 300 V. It is RoHS compliant and lead-free. The product lifecycle status is scheduled for obsolescence.
Common Mode Chokes Feature Summary
- Two-line common mode noise suppression for EMI/EMC mitigation
- Through-hole mounting configuration for robust installation
- RoHS compliant and lead-free construction
Common Mode Chokes Applications
- Power line filtering
- EMI noise suppression
- Electromagnetic compatibility (EMC) improvement
Common Mode Chokes Procurement Notes
Verify the current availability status as the component is listed under scheduled obsolescence. Confirm that the through-hole package and 1.0 A current rating align with the target design requirements. Ensure compliance with RoHS standards if required by the end application. Check for updated datasheets from Murate Manufacturing Co., Ltd. to confirm final specifications before integration.
Common Mode Chokes Selection Notes
Select this component for applications requiring through-hole common mode chokes with a 1.0 A current handling capability. The 710 µH inductance and 300 V rating suit specific power line filtering needs. Consider the scheduled obsolescence status when planning long-term production cycles. Verify mechanical dimensions and pin configurations against the PCB layout constraints.
Common Mode Chokes Part Context
This part belongs to the Murata Electronics common mode choke series, specifically engineered for noise suppression in electronic circuits. It addresses growing concerns regarding electromagnetic interference (EMI) and electromagnetic compatibility (EMC). The component utilizes Murata's expertise in passive components to provide reliable filtering solutions for various industrial and consumer applications.
Common Mode Chokes Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Due to the scheduled obsolescence status, alternative components must be sourced based on equivalent electrical parameters such as inductance, current rating, and package type.
