PLH10AS7003R6P2B

Common Mode Chokes Overview

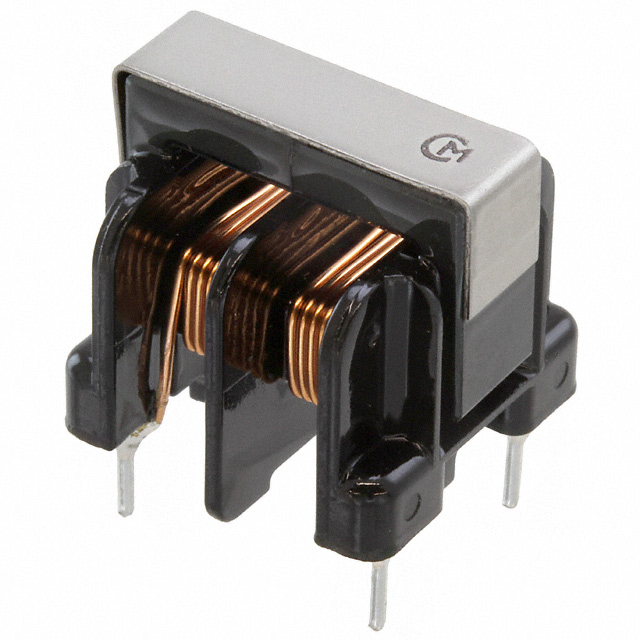

The PLH10AS7003R6P2B is a vertical common mode choke manufactured by Murata Electronics. It features a 70uH inductance and supports a maximum current rating of 3.6A. The component has a DC resistance (DCR) of 30mOhm maximum and a voltage rating of 300V DC. Operating temperature ranges from -25°C to 60°C. Dimensions are 18.00mm x 16.00mm with a 4-pin vertical package.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for signal lines
• Vertical mounting configuration for space-efficient PCB integration
• Designed for high-current applications up to 3.6A

Common Mode Chokes Applications

• Signal line filtering in electronic circuits
• EMI suppression in industrial equipment
• Noise reduction in automotive electronics

Common Mode Chokes Procurement Notes

Verify the specific datasheet version when sourcing, as Murata may update specifications over time. Confirm that the 300V DC rating and 3.6A current capacity align with your circuit requirements. Ensure the vertical 4-pin package fits your board layout constraints. Check RoHS compliance status if required by your manufacturing standards.

Common Mode Chokes Selection Notes

Select this component when common mode noise attenuation is needed at 70uH. The 3.6A rating suits moderate current applications. Consider the 30mOhm DCR for power loss calculations. The vertical form factor impacts board height. Verify thermal performance within the -25°C to 60°C range for your environment.

Common Mode Chokes Part Context

This part belongs to Murata's common mode choke family. It is designed for EMI filtering in various electronic systems. The product line includes similar components with different inductance and current ratings. Murata provides technical documentation for integration support.

Common Mode Chokes Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
